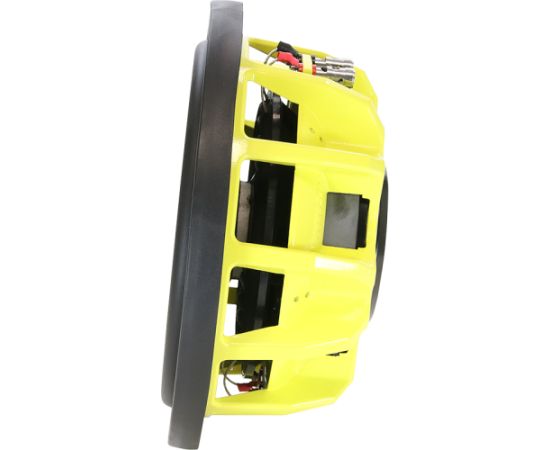

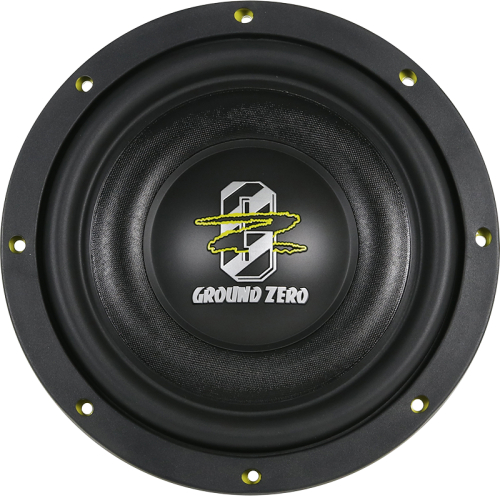

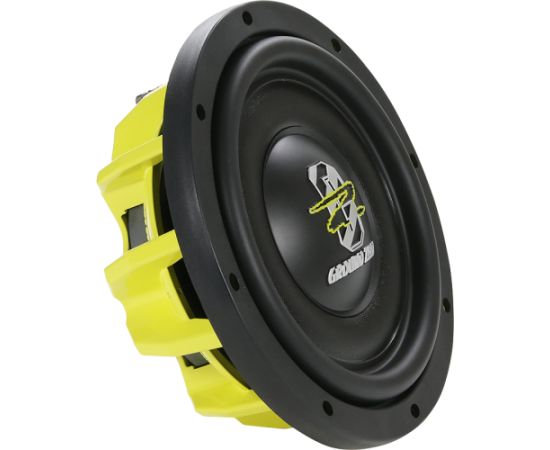

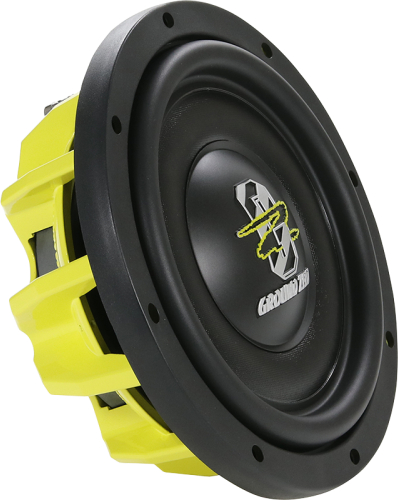

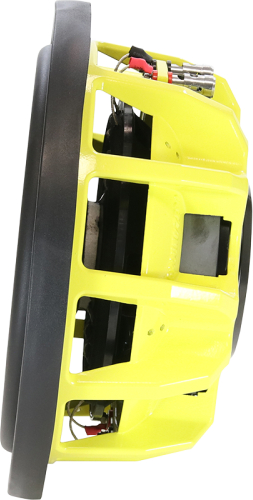

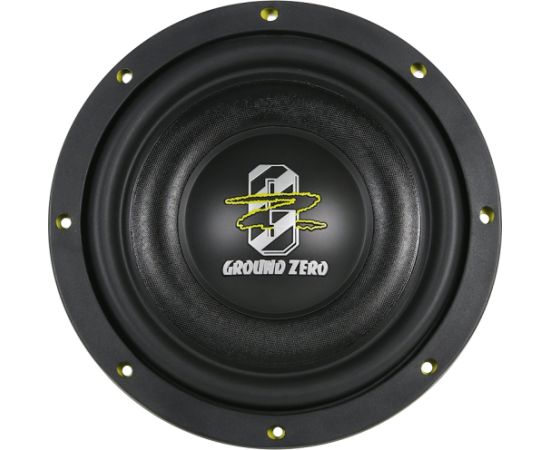

Ground Zero GZHW 10SPL-D2 FLAT

KODS: GZHW 10SPL-D2 FLAT

Preces ID:1741614

299¹⁰ ^€

Piegādātāja noliktavā: 1 prece(s)

+ −

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsGround Zero

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

The brand-new HYDROGEN series GZHW 10SPL-D2 FLAT subwoofer solves the
problem of cramped installation space requiring a shallow enclosure for the
subwoofer. Equipped with a powerful motor and a huge voice coil known from
the existing subwoofers of the Hydrogen SPL series, this moden handles power
input of up to 1000 Watts SPL

10″ high quality flat SPL subwoofer
Klippel® optimized
Sandwich paper cone
Durable U-shape rubber surround
Solid aluminum cast basket
63 mm / 2.5″ copper voice coil
4-layer copper voice coil
Push terminal

Enclosure recommendation:

Vented: 17 Liter netto / 0.60 cu.ft. net
Port 1 x 70 mm / 1 x 2.76”
port length* 300 mm / 11.81”
frequency 39 Hz

Sealed (minimum)
15 Liter netto / 0.53 cu.ft. net

NOTE! Works from 9 liters in a sealed case!

Model
High-Quality Flat SPL Subwoofer

Diameter
25 cm / 10″

Power Handling (RMS/SPL.)
600 / 1000 Watts

Impedance
2x 2 Ohms

Efficiency
85 dB

Power Recommendation
400 – 1000 Watts

Voice Coil
63 mm / 2.5″ Copper

Max. Excursion (Xmax)
29 mm / 1.14″

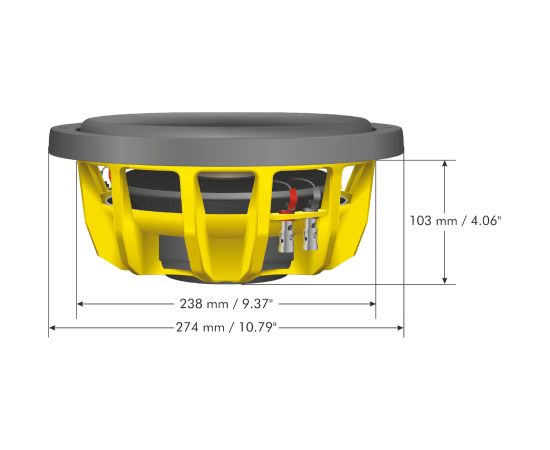

Mounting Ø
238 mm / 9.37″

Mounting Depth
103 mm / 4.06″

Resonance Frequency (Fs)
35.5 Hz

Overall Qaulity (Qts)
0.434

Equiv. Air Volume (Vas)
19.7 L / 0.70 cu.ft..
