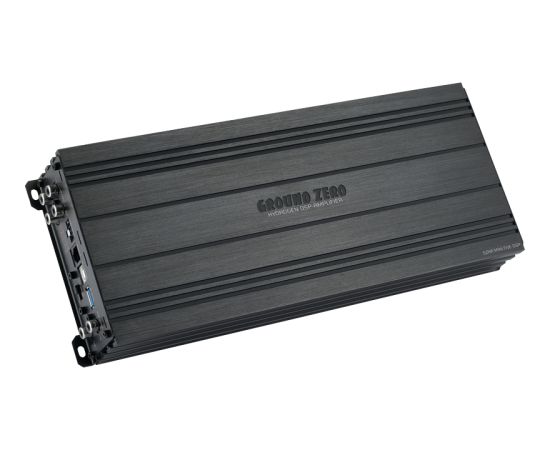

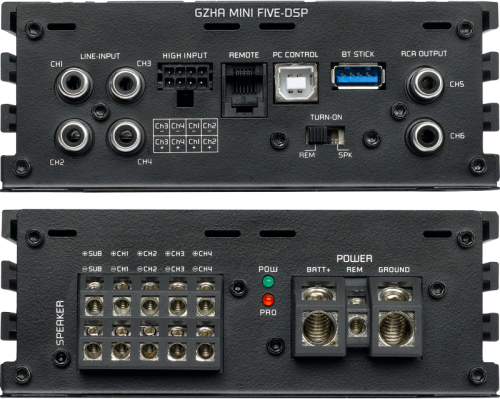

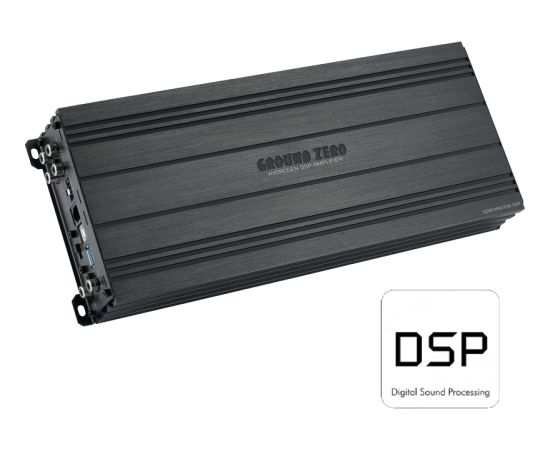

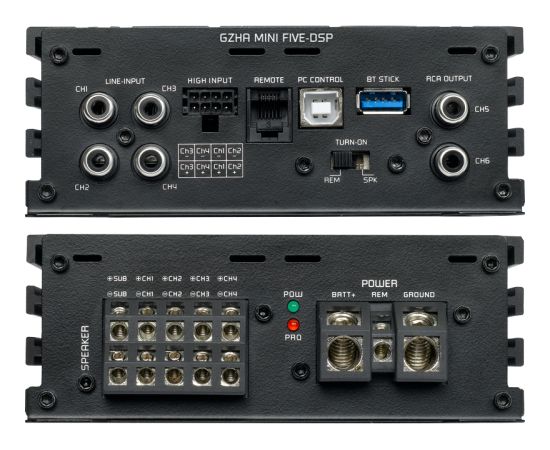

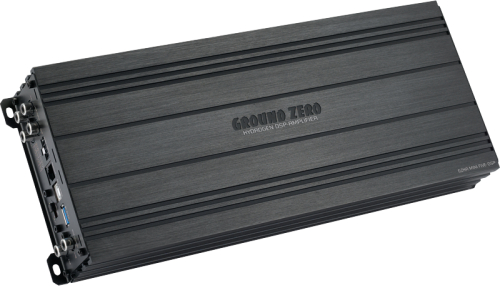

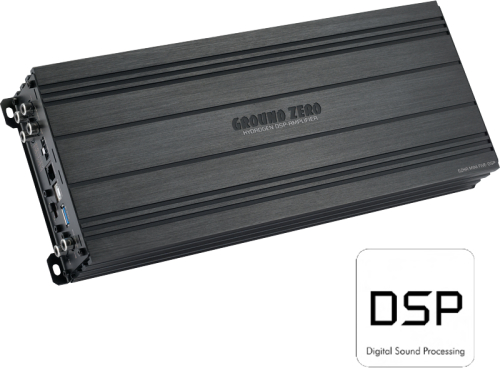

Ground Zero GZHA MINI FIVE-DSP

KODS: GZHA MINI FIVE-DSP

Preces ID:1713177

499⁶⁰ ^€

Piegādātāja noliktavā: 2 prece(s)

+ −

Piegāde

Apmaksas veidi

Mūsu priekšrocības

24 mēnešu garantija

SMS / E-pasta paziņojumi

Preču atgriešana 14 dienu laikā

Dažādi maksājuma veidiPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Godīga cenaLepojamies, ka arī juridiskām personām esošā cena ir bez kādiem papildus maksājumiem!

RažotājsGround Zero

Preces apraksts
Specifikācija
Uzdot jautājumu
Energoefektivitātes lapa

High efficient 5-channel class D amplifier with built-in 7-channel DSP

5-channel amplifier with high efficient class D circuit, integrated DSP and compact dimensions

Compact sized 5-channel amplifier with DSP
7-channel DSP
Class D technology
1 ohm stable (subwoofer channel)

Parametric equalizer for each channel (10 bands/channel)
Time alignment (0-8 ms / 0-272 cm / 0-107”) for each channel

Adjustable crossover (HPF / LPF / BPF from 20 Hz to 20 kHz)

Solid heatsink with engraved Ground Zero lettering

High-level input with auto-on function

Download DSP-software here: https://www.ground-zero-audio.com/en/produkt/gzha-mini-five-dsp/

Channels 5+7 DSP
Output Power (@ 4Ω) 4x 75 + 190 Watts RMS
Output Power (@ 2Ω) 4x 125 + 320 Watts RMS
Output Power (@ 1Ω) (subwoofer channel) 500 Watts RMS
max. Output Power (CEA-2006A / 10%THD+N) 1200 Watts

Damping factor 100
Input sensitivity (RCA) 300 mV – 1.0 V
Frequency Response: 20 Hz – 20 kHz
HPF / LPF / BPF: DSP
Bass Boost / Phase switch: DSP
High level input / Auto-on
Fuse(s) 2x 40A (internal)
Dimensions (W x L x H) 135 x 322 x 52 mm / 5.31″ x 12.68″ x 2.05″

Frequency range 20 Hz – 20 kHz (-3 dB)
SNR / line input ≥115 dB
SNR / high level input ≥105 dB
THD / line input 0.002 %
THD / high level input 0.010 %
DSP chipset 2x Analog Devices SigmaDSP
Input impedance Line input (RCA) ≥20 kΩ
High-level input 39 Ω
Remote input voltage 10 V
Switching voltage / speaker input 1.3 V
Turn on delay 8 seconds
Software compatibility Microsoft Windows™ XP SP3, Vista, 7, 8, 8.1,10
Preset memory 6 presets (individually assignable)
Gain range -60 bis +6 dB
Equalizer 8x 10 band EQ (20 Hz – 20 kHz) with adjustable Q
Time delay 0 – 8 ms / 0 – 272 cm / 0 – 107“
Crossover 6 / 12 / 18 / 24 dB/oct. slope with selectable filter
characteristic
Phase correction 0° / 180°
