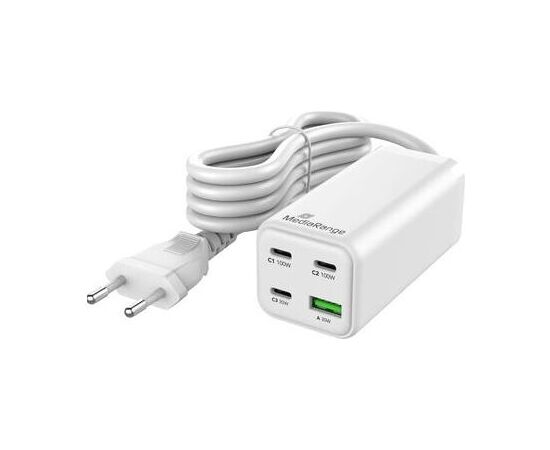

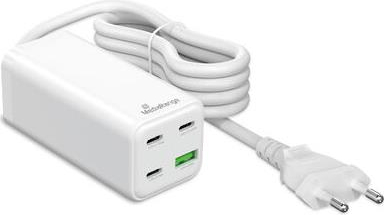

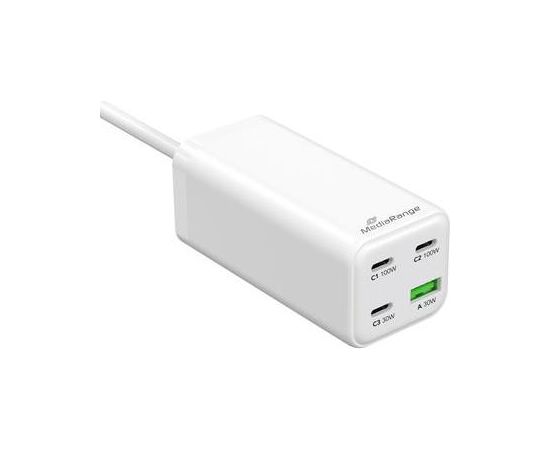

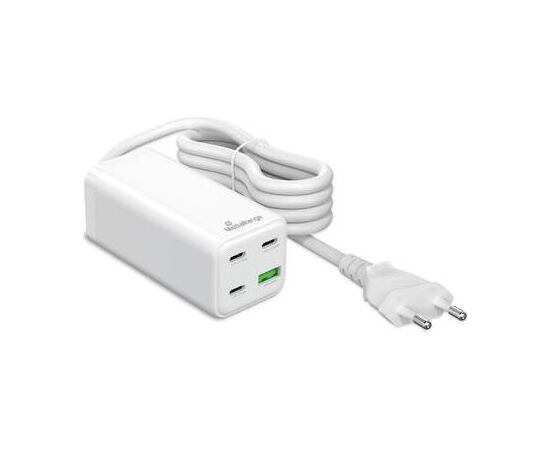

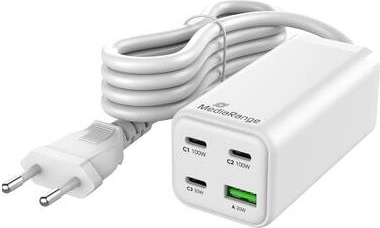

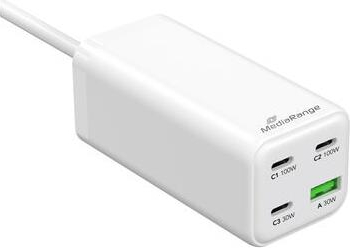

MediaRange 100W GaN Fast Charging Station 1.5m Cable Power Delivery and Quick Charge™ White

MediaRange 100W GaN Fast Charging Station, 1.5m Cable (EU-Plug), 3x USB-C and 1x USB-A, USB-C® Power Delivery and Quick Charge™ enabled, White

Central multi-device charging solution for desktop and workstation setups

The MediaRange 100W GaN fast charging station is designed as a central charging solution for desks, workstations and home office environments. Equipped with a fixed 1.5m power cable, it provides flexible placement on desks or shelves and enables simultaneous charging of up to four devices via three USB-C ports and one USB-A port.

Advanced GaN technology for high performance and reduced heat generation

Advanced GaN (Gallium Nitride) technology allows a compact and efficient design while significantly reducing heat generation during operation. Intelligent integrated chipsets continuously monitor charging power and temperature throughout the entire charging process to ensure stable, efficient and safe performance.

Support for modern fast charging standards

The charging station supports latest fast charging technologies, enabling compatible devices to be charged efficiently according to their individual power requirements. It is suitable for charging smartphones, tablets, USB-C–powered laptops, wearables and other mobile devices.

Certified safety and durable housing design

The charging station features a shock- and fire-resistant V0-rated polycarbonate housing and is Intertek GS certified, meeting high safety and quality standards for reliable everyday use in professional and private environments.

FEATURES
Key Features

100W GaN fast charging station with Type-C EU-Plug and 1.5m power cable
Supports USB-C® Power Delivery 3.0, PPS (Programmable Power Supply) and Quick Charge™ 3.0¹

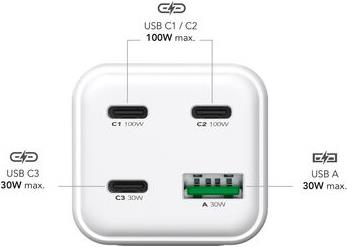

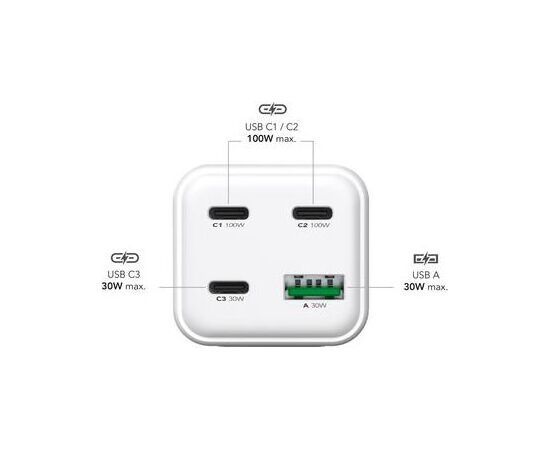

Three USB-C ports and one USB-A port for simultaneous charging of up to four devices²
USB-C1 and USB-C2 each support up to 100W output when used individually
Designed for desktop, workstation and home office use as a central charging solution
Advanced GaN technology for compact design and reduced heat generation
Intelligent chipsets for continuous monitoring of charging power and temperature
Overvoltage, overcharge, short-circuit and overheating protection
Shock- and fire-resistant V0-rated polycarbonate housing
Intertek GS certified and equipped with comprehensive protection mechanisms³
Technical Data

Input voltage / frequency / current: AC 100–240V, ~50/60Hz, 1.8A (max.)
Total output power: 100W (max.)
Output voltage / -current / -power:
USB-C1/C2 (Power Delivery 3.0): 5.0V ⎓ 3.0A / 9.0V ⎓ 3.0A / 12.0V ⎓ 3.0A / 15.0V ⎓ 3.0A / 20.0V ⎓ 5.0A (100W max.)
PPS (Programmable Power Supply): 3.3–21.0V ⎓ 5.0A (100W max.)
USB-C3 (Power Delivery 3.0): 5.0V ⎓ 3.0A / 9.0V ⎓ 3.0A / 12.0V ⎓ 2.5A / 15.0V ⎓ 2.0A / 20.0V ⎓ 1.5A (30W max.)
PPS (Programmable Power Supply): 3.3–11.0V ⎓ 3.0A (30W max.)
USB-A (Quick Charge 3.0): 5.0V ⎓ 3.0A / 9.0V ⎓ 3.0A / 12.0V ⎓ 2.5A (30W max.)
Combined output power:
USB-C1 + USB-C2: 65.0W + 30.0W (95.0W max.)
USB-C3 + USB-A: 5.0V ⎓ 3.0A (15.0W max.)
USB-C1 / USB-C2 + USB-C3 / USB-A: 65.0W + 30.0W (95.0W max.)
USB-C1 + USB-C2 + USB-C3: 45.0W + 30.0W + 20.0W (95.0W max.)
USB-C1 + USB-C2 + USB-A: 45.0W + 30.0W + 18.0W (93.0W max.)
USB-C1 + USB-C2 + USB-C3 + USB-A: 45.0W + 30.0W + 15.0W (90.0W max.)
Average efficiency during operation: 80.57%
Efficiency at low load (10%): 65.84%
Power consumption at zero load: 0.213W
Color: White
Dimensions / Weight: 90 × 40 × 42 mm / 320 g
Cable length: 1.5 m
Included in the Box

Charging station with attached power cable
User manual and safety instructions
