EXD Внешняя карта видеозахвата HDMI, 4K 30Hz

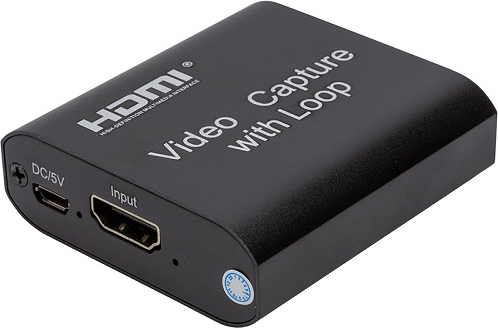

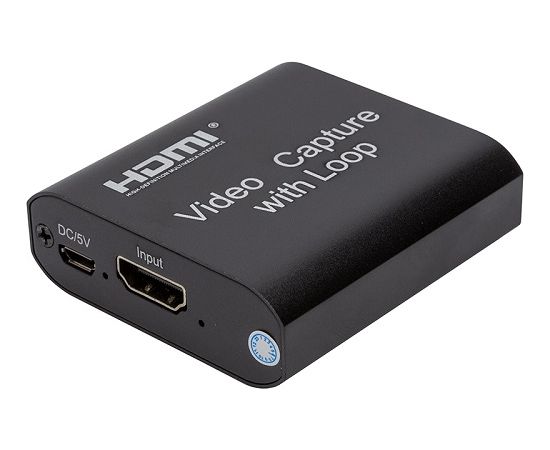

| HDMI Video Capture Device allows you to capture high-definition video and audio and transmit them to a computer or smartphone for preview, recording or storage. It is suitable for high-definition video recording, training recordings, medical imaging and other similar applications. The maximum output resolution is Full HD 1080p. Features: Supports HDMI signal pass-through to an external display via an additional HDMI output (HDMI Loop Out). Supports a maximum input resolution of up to 4K. Supports video output resolutions up to 1080p. Supports HDMI AWG26 cables up to 15 m in length (at 1080p and lower resolutions). Supports USB Video Class (UVC) and USB Audio Class (UAC) standards. Compatible with Windows, Android and macOS operating systems. Compatible with a wide range of capture software, including VLC, OBS, Amcap and more. Compact and portable. Specifications: Maximum input resolution: 4K @ 30Hz. Maximum output resolution: 1080p (1920 x 1080). Voltage: 5V DC. Current: Max. 0.7A. USB standard: USB 2.0. Supported color depth: 8 / 10 / 12-bit (Deep Color). Supported audio format: LPCM. Video output formats: YUV, JPEG. Maximum input cable length: Up to 15 m (HDMI AWG26). Operating temperature: -10°C to +55°C. Dimensions: 55 x 55 x 20 mm. Weight: 50 g. Warranty: 12 months. |
Mарка:
EXD
