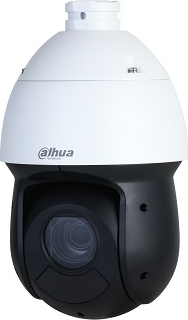

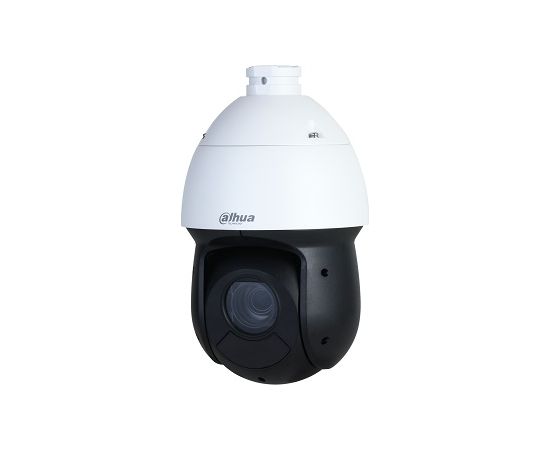

| Camera |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) Ч 1080 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Electronic Shutter Speed | 1/1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on) |
| Illumination Distance | 100 m (328.08 ft) (IR) |
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR |
| Illuminator Number | 3 (IR) |
| Lens |
| Focal Length | 5.0 mm–80.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 53.9°–4.6°; V: 30.3°–2.6°; D: 60°–5.3° |
| Optical Zoom | 16Ч |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–2 m (0.33 ft–6.56 ft) |
| Iris Control | Fixed |
| DORI Distance | Detect | Observe | Recognize | Identify |
| 1,131 m (3,710.63 ft) | 452 m (1,482.94 ft) | 226 m (741.47 ft) | 113 m (370.73 ft) |
| PTZ |
| Pan/Tilt Range | Pan: 0° to 360° endless
Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°/s–80°/s
Tilt: 0.1°/s–80°/s |
| Preset Speed | Pan: 80°/s; Tilt: 80°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Pattern; Preset; Tour |
| PTZ Protocol | DH-SD
Pelco-P/D (auto recognition) |
| Intelligence |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification |
| Face Detection | Support face detection; capturing pictures; face enhancement |
| SMD | YES |
| Video |
| Video Compression | H.264H; H.264B; Smart H.265+; H.265; MJPEG (Sub Stream 1); Smart H.264+; H.264M |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 Ч 1080); 960p (1280 Ч 960); 720p (1280 Ч 720); D1 (704 Ч 576/704 Ч 480); VGA (640 Ч 480); CIF (352 Ч 288/352 Ч 240) |
| Video Frame Rate | Main stream: 1080p/960p/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/960p/720p (1–25/30 fps) |
| Bit Rate Control | CBR; VBR |
| Video Bit Rate | H.264: 1792 kbps–8192 kbps
H.265: 512 kbps–5632 kbps |
| Day/Night | Auto (ICR); Color; B/W |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16Ч |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ?55 dB |
| Audio |
| Audio Compression | G.711a; G.711Mu; G.722.1; G.726; MPEG2-Layer2; G.729 |
| Network |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | TCP; FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; IP Filter; SMB; HTTP; SSL; DHCP; SMTP; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP |
| Interoperability | CGI; Dahua SDK; API; SDK; ONVIF (Profile S&G&T) |
| Streaming Method | Unicast; Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | FTP; Micro SD card (512 GB); NAS |
| Browser | IE 7 and later versions
Chrome
Firefox
Safari |
| Management Software | DSS; DMSS; ConfigTool; NVR; Smart PSS; IVSS |
| Mobile Client | iPhone; iPad; iOS; Android |
| Certification |
| Certifications | CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014 |
| Port |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT, bare wire) |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Alarm Linkage | Capture; preset; tour; pattern; recording; alarm digital input; audio; send email |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Power |
| Power Supply | 12 VDC, 3 A (± 10%)
PoE (802.3at) |
| Power Consumption | Basic: 12 W
Max.: 20 W (IR light) |
| Environment |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ?95% |
| Protection | IP66; TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure |
| Product Dimensions | 270.4 mm Ч ?160.0 mm (10.65" Ч ?6.30") |
| Net Weight | 2.4 kg (5.29 lb) |
| Gross Weight | 3.9 kg (8.60 lb) |
