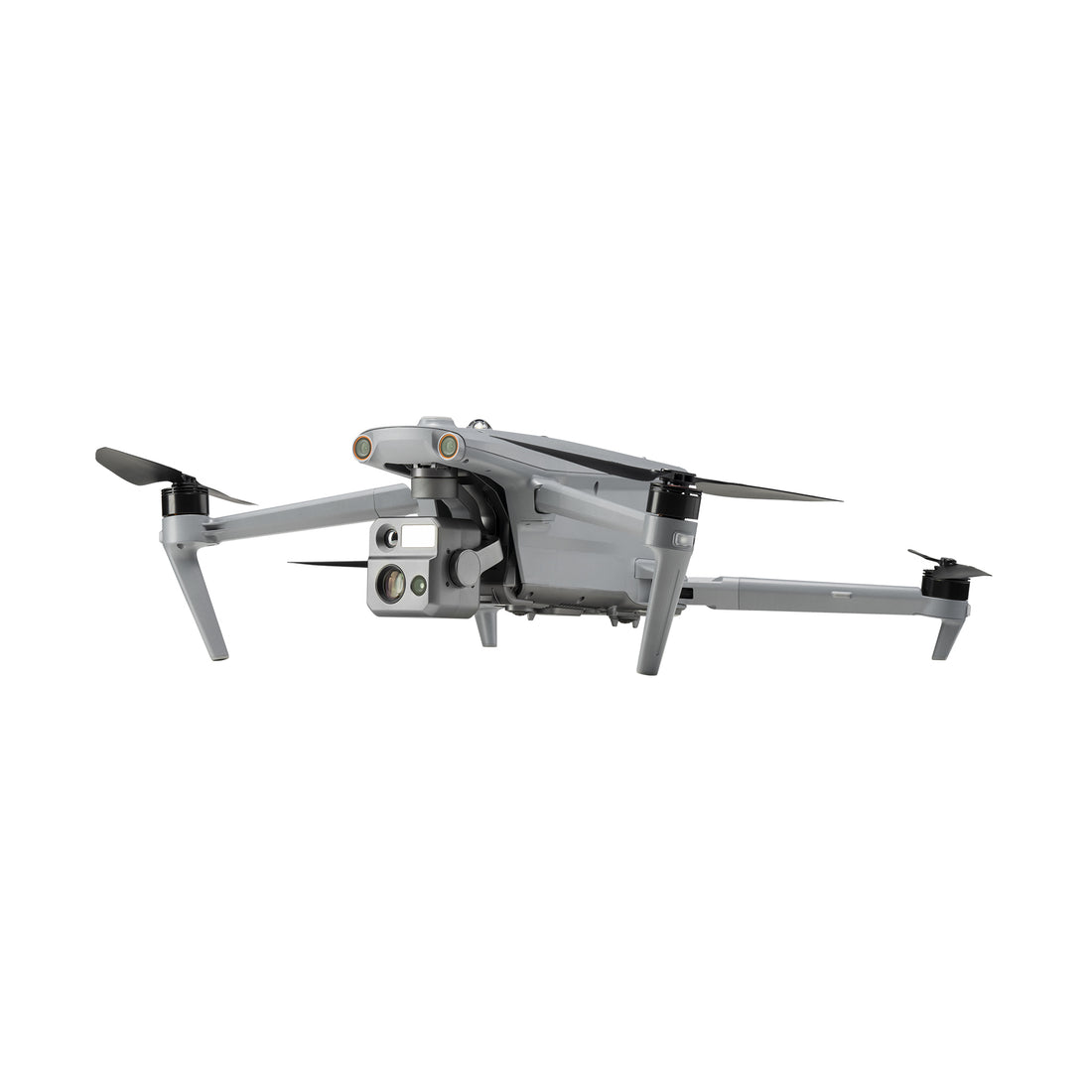

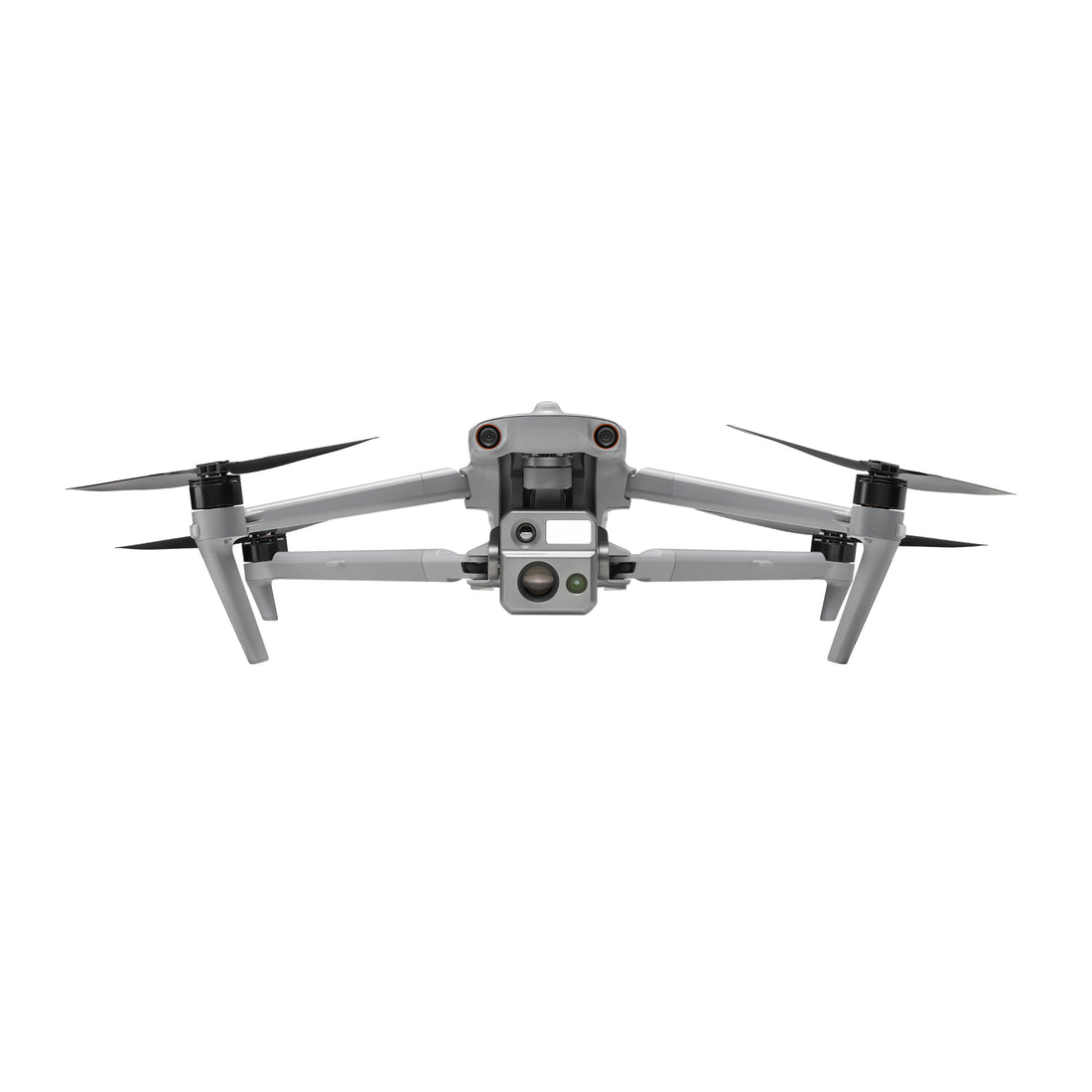

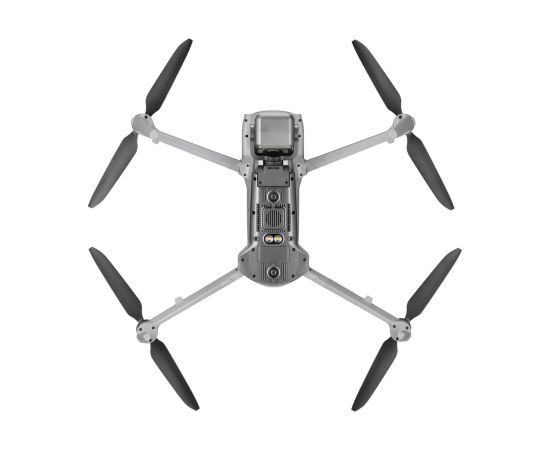

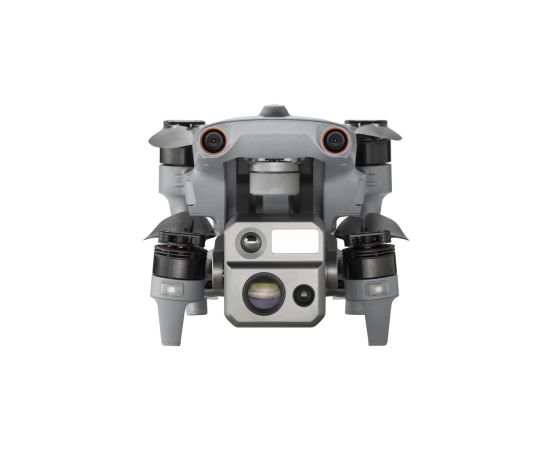

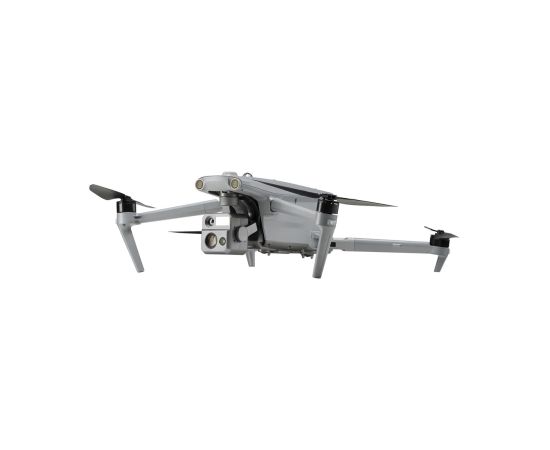

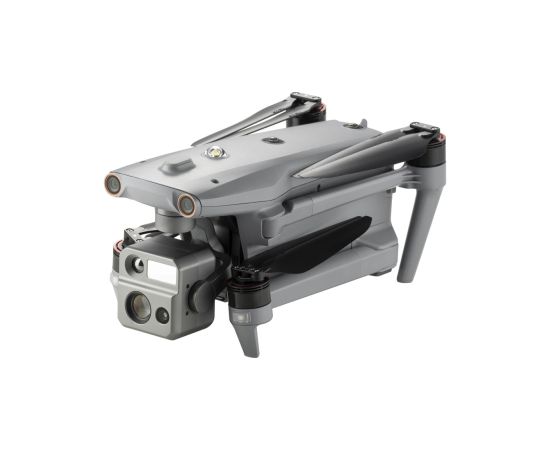

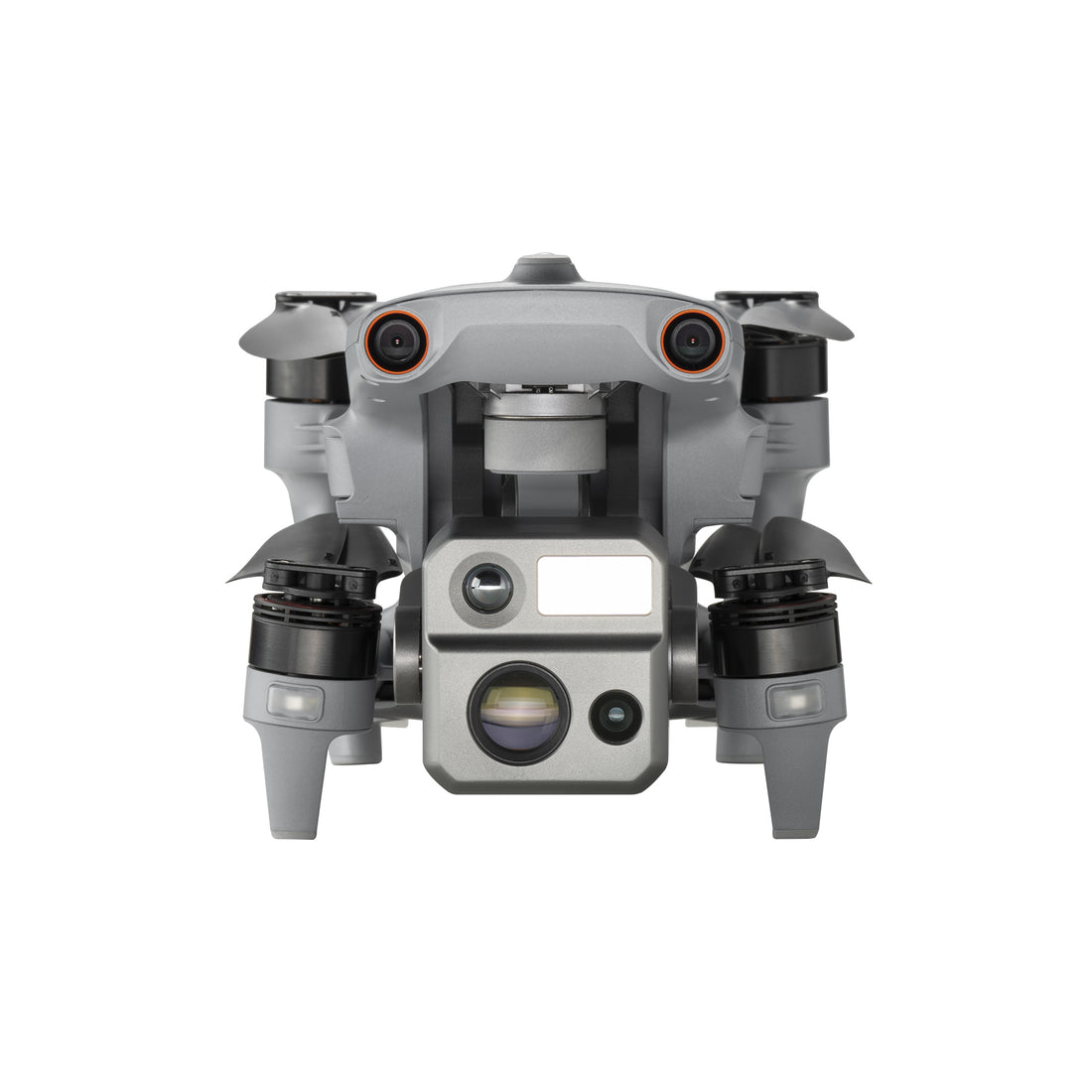

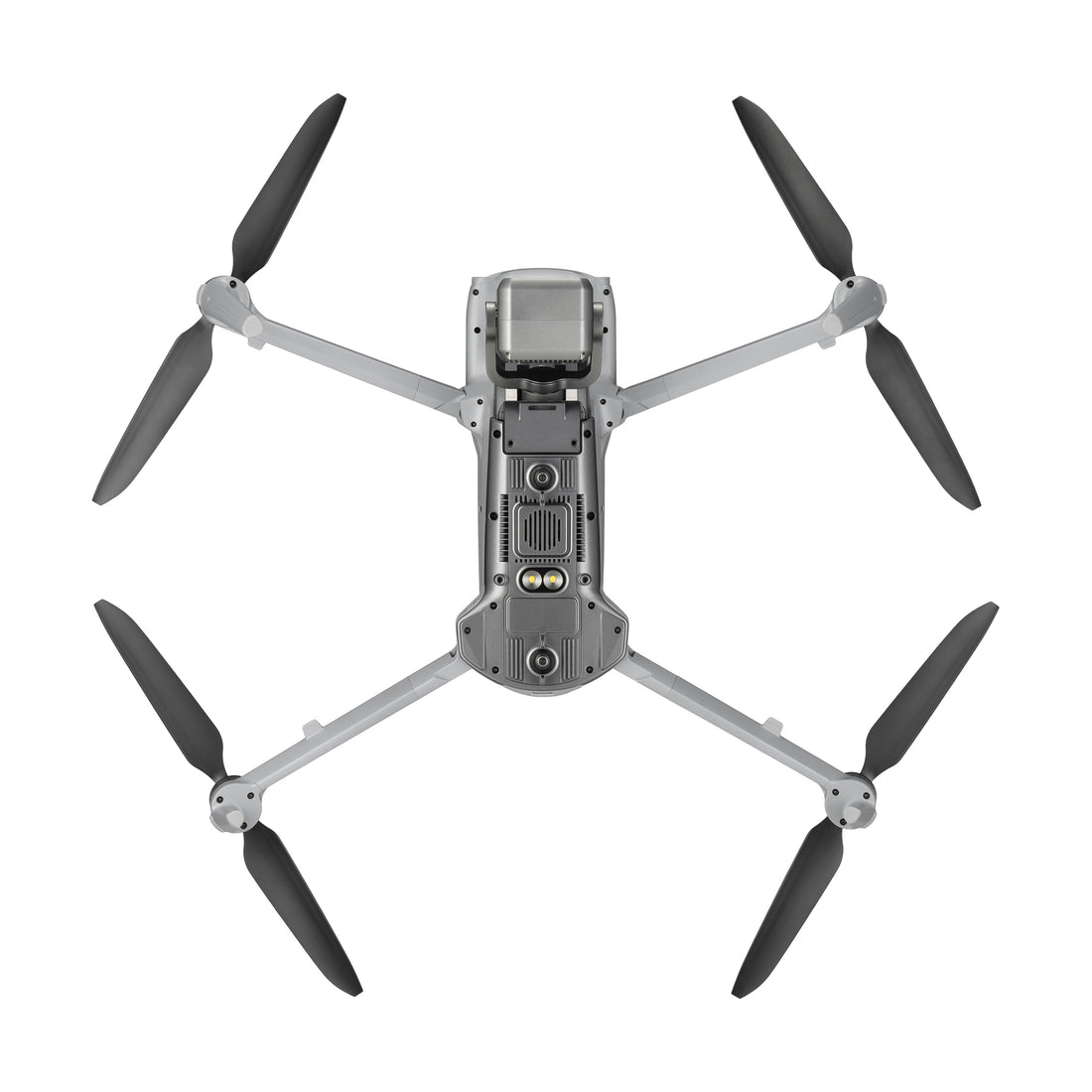

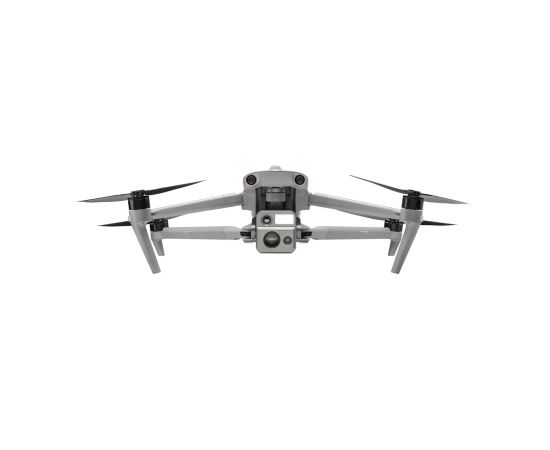

EVO Max 4N
- Starlight Night-Vision Camera | as low as 0.0001 LUX and ISO ranges from 100-450,000
- Lock Targets & Track at Night
- Autel SkyLink 3.0 | 12.4 miles Transmission Range
- 720° Obstacle Avoidance
- A-Mesh 1.0 | Mesh Networking Technology
- 3D Map Planning | Multiple Mission Types | Data Security
- Navigation in GPS Denied Environments
- 42 mins Max Flight Time
- IP43 ingress protection, and -20° F～122° F temperature operation range
| Weight | 3.57 lbs (1620g, battery and gimbal included) |
| Max. Takeoff Weight | 4.41 lbs (1999 g) |
| Dimensions | 576*660*149 mm(fold, incl. propellers) 340*407*148 mm(fold, excl. propellers) 257*136*133 mm (unfold, excl. propellers) |
| Diagonal Wheelbase | 464mm |
| Max Ascent Speed | 8m/s |
| Max Descent Speed | 6m/s |
| Max Horizontal Speed (windless near sea level) | 23m/s |
| Maximum Takeoff Altitude | 13,124 ft (4000m) |
| Max Flight Time (windless) | 42 mins |
| Max Hover Time (windless) | 38 mins |
| Max Wind Resistance | 27mph* *Takeoff and landing can withstand wind speeds up to 27 mph (12 m/s). |
| IP Rating | IP43 |
| Max Tilt Angle | 35° |
| Max Angular Velocity | Pitch: 300°/s; Yaw: 120°/s |
| Operating Temperature | -20℃～+50℃ |
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions. |
| GNSS | GPS+Galileo+BeiDou+GLONASS |
| Transmitter Power (EIRP) | 2.4GHz: <33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz: <30dBm(FCC), <23dBm(SRRC/MIC) |
| Hovering Accuracy | Vertical: ±0.1 m (Vision System enabled); ±0.5 m (GNSS enabled); ±0.15 m (RTK enabled); Horizontal: ±0.3 m (Vision System enabled); ±0.5 m (GNSS enabled); ±0.1 m（RTK enabled）； |
| Mechanical Range | Pitch: -135° to 45° Roll: -45° to 45° Yaw: -45° to 45° |
| Controllable Range | -90° to 30° |
| Stable system | 3-axis mechanical gimbal (pitch, roll, pan) |
| Max. Control Speed (pitch) | 200º/s |
| Angular Vibration Range |
<0.005° |
| Sensor | Effective Pixels:2.3M |
| Lens | Focal length: 35mm (equivalent: 41.4mm) Zoom Range:1-8x(synced zoom supported) |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Auto:IOS100-ISO450000 Super Sensitive Mode:Auto IOS100-ISO450000 |
| Electronic Shutter Speed | Photo: 8s ~ 1/8000 Video: 1s ~ 1/8000 |
| Max Photo Size | 8000×6000 |
| Max. Video Resolution | 7680×4320 |
| Sensor | 1/1.28 CMOS, Effective pixels: 50M, Night mode: 12.50M |
| Lens | DFOV：85° Focal length: 4.5 mm (equivalent: 23 mm) Aperture: f/1.9 AF motor: 8-wire SMA, PDAF focus |
| Exposure Compensation | ±3EV 0.3EV/step |
| ISO Range | Auto: Photo: ISO100~ISO6400 Video: ISO100~ISO64000 (Night mode: up to ISO64000) Manual: Photo: ISO100~ISO12800 Video: ISO100~ISO6400 |
| Electronic Shutter Speed | Photo: 8s ~ 1/8000 Video: 1s ~ 1/8000 |
| Max. Video Resolution | 3840×2160 |
| Photo Size | 8192*6144 4096*3072 |
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | DFOV: 61° Aperture: 9.1mm Focus: f/1.0 |
| Infrared Temperature Measurement Accuracy |
26.6~37.4 ℉ or reading ±3% (using the larger value) @ambient temperature -4℉ to 140℉ |
| Video Resolution | 640*512 |
| Photo Size | 640*512 |
| Pixel Pitch | 12 um |
| Temperature Measurement Method | Center measurement, pot measurement, Rectangular measurement |
| Temperature Measurement Range | -4℉ to 302℉, 32℉ to 1022℉ (-20°C to 150°C, 0 to 550°C) |
| Temperature Alert | High and low temperature alarm thresholds, reporting coordinates and temperature values |
| Palette | White Hot/Black Hot/Searing/Rainbow/Grey/Ironbow/Cold and Hot |
| Measurement Accuracy | ±1m |
| Measuring Range | 1.2km |
| Operating Frequency | 2.4G/5.2G*/5.8G/900MHz* *5.2GHz is only applicable for FCC, CE, and UKCA regions. 900MHz is only applicable for FCC regions. |
| Max Transmission Distance (unobstructed, free of interference) |
20km(FCC), 8km(CE) |
| Independent Networking | 7.9-inch Smart Controller |
| Transmitter Power (EIRP) | 2.4GHz: <33dBm（FCC）, <20dBm(CE/SRRC/MIC) 5.8GHz: <33dBm(FCC), <30dBm(SRRC), <14dBm(CE) 5.15-5.25GHz: < 23dBm(FCC/SRRC/MIC) 5.25-5.35GHz: <30dBm(FCC), <23dBm(SRRC/MIC) |
| Non-GPS Hovering and Manual Flight | Indoor: Horizontal error ≤3cm （At least have texture at one direction） Outdoor: Daytime: Within 500m flight height, horizontal error < 0.01*height Night: Manual flight is controllable within 100m flight height |
| Non-GPS Return-to-Home | Within 500m flight height, horizontal error of Return-to-Home point < 30cm |
| Automatic Obstacle Rerouting | High Speed Obstacle Rerouting: Flight speed up to 45mph(20m/s) when Min. safety distance to obstacle is 4.9ft (1.5m) High Precision Obstacle Rerouting: Flight speed could reach 6.7mph(3m/s) when Min. safety distance to obstacle is 1.6ft (0.5m) |
| Multi-target Recognition and Tracking | Target identification types: people, vehicles, boats Number of targets detected: 64 Comprehensive recognition accuracy: > 85% |
| Frequency | 60Ghz~64Ghz* |
| Size | 1.5*0.55*0.08 in（L*W*H） |
| Weight | 0.07oz (2g) |
| EIRP | 18dBm |
| Sensing Range | Upward: 5.9~787.4in (0.15~20m) Downward: 3.9~4724.4in(0.1~120m) Forward and Backward (Standard/Comfortable): 0.82~98.43ft (0.25~30m) Forward and Backward（Ludicrous）: 1.64~196.85ft (0.5~60m) |
| FOV | Horizontal（6dB）：±60°，Vertical（6dB）：±30° |
| Speed Measurement Range | ± 134mph (60m/s) |
| Speed Measurement Accuracy | ≤1% |
| Max. Target Detection Number | 32 |
| Obstacle Sensing Range | Forward/Upward/Downward/Backward/Sideward: 0.2~50m |
| FOV | Forward/Backward/Sideward: 60°(H)，80°(V) Upward/Downward: 360°(H)，190°(V) |
| Screen | 7.9 inch, 2000nits max. brightness, 2048*1536 resolution |
| External Battery | Capacity: 5800mAh Voltage: 11.55V Battery Type: Li-on Energy: 67Wh Charing time: 120mins Intelligent Lithium Ion Battery |
| Operating Time | 3 hours (Max. brightness) 4.5 hours (50% brightness) |
| Max Transmission Distance (with interference) |
FCC: 20km CE: 8km |
| IP Rating | IP43 |
| Storage | 128G |
| GNSS | GPS+GLONASS+Galileo+Beidou+NavIC+QZSS |
| Operating Temperature | -20℃ to 40℃ |
| Protocol | WiFi Direct, Wi-Fi Display, 802.11a/b/g/n/ac Support 2 x 2 MIMO Wi-Fi |
| Operating Frequency[ | 2.400 - 2.4835 GHz； 5.150 - 5.250GHz； 5.725 ‒ 5.850 GHz |
| Transmitter Power (EIRP) | 2.400 - 2.4835 GHz FCC/CE:≤20dBm 5.150 - 5.250GHz FCC:≤17dBm 5.725 ‒ 5.850 GHz FCC:≤17dBm CE:≤14dBm |
| Capacity | 8070mAh |
| Voltage | 14.88V |
| Battery Type | LiPo 4S |
| Energy | 120wh |
| Net Weight | 520g |
| Charging Temperature | 5ºC to 45ºC(When the temperature is lower than 10° C (50° F), the selfheating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery) |
| Hot Swap | Support |
