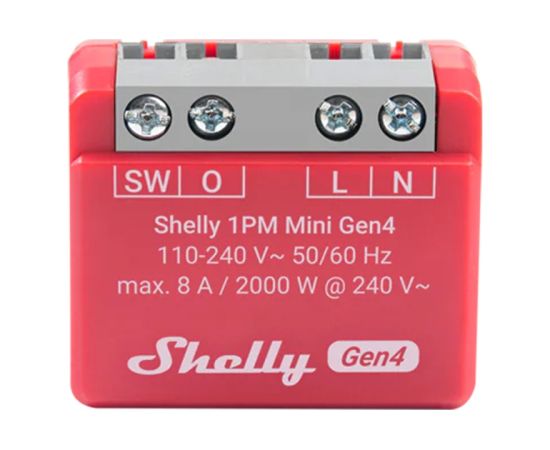

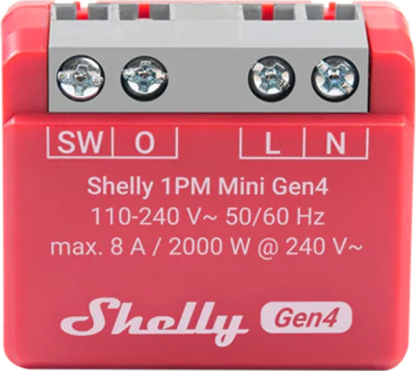

Shelly 1PM Mini Gen4 Controller Zigbee/Matter
Shelly 1PM Mini Gen4 Controller Zigbee/MatterThe Shelly 1PM Mini Gen4 controller allows you to remotely control electrical devices and accurately measure their energy consumption. It supports Wi-Fi, Zigbee, Bluetooth and Matter, so it can be easily integrated into various home automation systems. It works on the local network and via the cloud. The built-in web interface allows you to configure and monitor operation without the need for additional software. Thanks to its small size, it fits into typical installation boxes and can be mounted behind outlets or switches in areas with limited space.
Control and monitoring in oneThe Shelly 1PM Mini Gen4 works as both a relay and an energy consumption meter. This gives you not only the ability to remotely turn devices on and off, but also insight into actual power consumption. The power measurement function allows you to accurately analyze the operation of connected equipment and helps optimize energy costs. The device sends data to the cloud or stores it locally depending on user preference.
Compatibility and ecosystem integrationsThe device supports Zigbee, Wi-Fi, Bluetooth and Matter protocols. It can be integrated into systems such as Google Home, Amazon Alexa, SmartThings and KNX. The controller also supports MQTT, HTTPS, Web Hooks, UDP and local APIs, enabling advanced scenarios and collaboration with other smart home components.
Programming, schedules and responsesThe product allows the creation of complex schedules and scenarios with the ability to set up to 20 schedules and webhooks - each with up to 5 URLs. It also supports scripts written in Shelly Script language, which allows automating actions depending on time conditions, device status or input data. You can also use so-called virtual components, which increase the flexibility of system configuration.
Stability and operational securityThe Shelly 1PM Mini Gen4 is equipped with a number of protections, including overheating, overvoltage, overload and power overload. Thanks to the ESP-Shelly-C68F microprocessor and 8 MB of flash memory used, the device provides fast data processing and stable operation. In addition, it can act as a repeater, amplifying Zigbee or Wi-Fi signals in hard-to-reach areas.
General
Physical parameters
Environmental conditions
Electrical parameters
Output circuit parameters
Sensors, meters
Wi-Fi
Bluetooth
Zigbee
Microcontroller unit
Firmware capabilities
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
