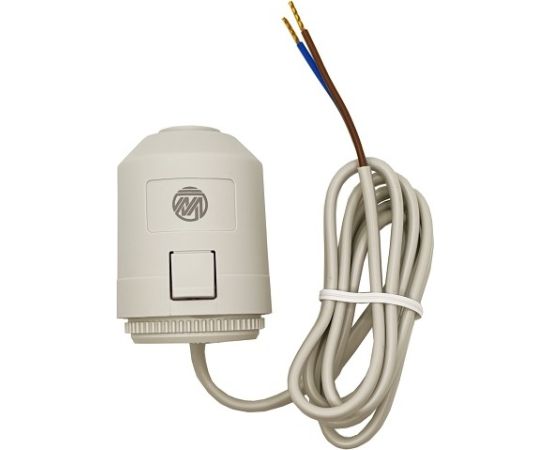

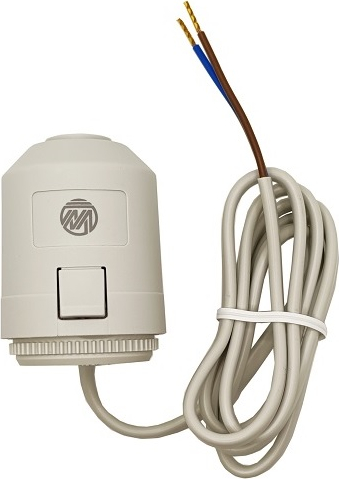

Hismart Thermal Actuator, NC, 230V AC
| NC AC230V thermal actuator. Features: Electric thermal actuator is designed for controlling the heat distribution equipment. It receives commands from automation devices (such as room thermostats or hub controller) and adjusts the water flow distribution according to set parameters. The thermal actuator allows precise control of room temperature and energy consumption. The thermal actuator is in NC (normally closed) state. The actuator works with any type of programmable or non-programmable room thermostats. Simple installation, the thermal actuators are connected to the manifold via a VA80 thread adapter. Valve thread adapter VA80 allows easy connection to standard thread M30, locking securely. Energy consumption of each drive is only 2W. Technical specifications: Purpose: water heating system. Operating type: NC (normally closed). Operating voltage: AC 230V, 50/60Hz. Starting current: max. 300mA. Power consumption: 2W. Installation: connected to the collector via an adapter. Adapter: VA 80. Cable length: 90cm. Operating temperature: 0°C~ +60°C. Storage temperature: -25°C~ +65°C. Operating humidity: < 80%RH (non-condensing). Safety class: IP54. Dimensions: Ё49.4mm x 56.6mm. Warranty: 12 months. |
Mарка:
HISMART
