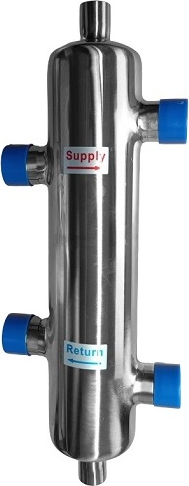

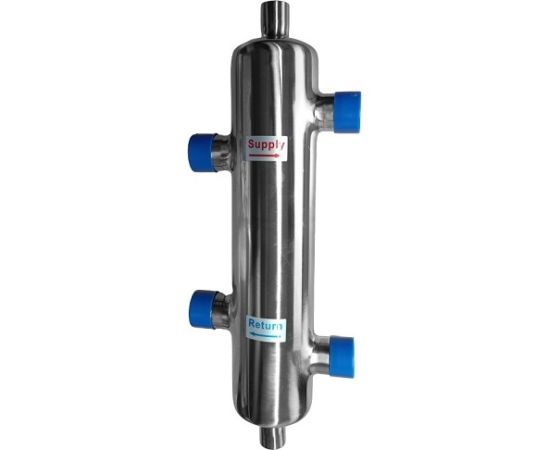

Hismart Hydraulic Separator, DN25 (G1"), with Insulation, 2500 l/h
| Hydraulic Separator DN25 (G1") with Insulation, 2500 l/h, 304 Stainless Steel Features: This is a high-quality hydraulic water pressure distributor designed to separate the primary and secondary circuits in a heating system. It allows both circuits to operate independently, ensuring balanced flow distribution and efficient heat transfer. It also stabilizes water pressure and protects pumps and other components from malfunctions. The hydraulic separator is suitable for systems with a maximum flow rate of up to 2500 l/h (2.5 mі/h). The unit features four side connections (2x supply + 2x return) and two direct inlets/outlets from the top and bottom. Made of high-grade 304 stainless steel (compliant with 304 SS / AISI 304 standards), it offers long-lasting performance and corrosion resistance. The device has a robust and reliable construction with a wall thickness of 2 mm and a diameter of 76 mm. Supplied with black foam insulation, which provides both mechanical protection and thermal insulation by reducing condensation on the surface. Quick and easy installation – includes insulation clips and a screw kit for mounting. Ideal for underfloor heating systems with multiple pumps or circuits, or where stable operation across different heat sources (boilers, heat pumps, etc.) is required. Suitable for various heating and cooling systems in both residential and commercial applications. Technical specifications: Nominal diameter: DN25. Thread type: G1" (BSPP). Connection outer diameter: Ё33.4 mm. Flow rate: 2.5 mі/h (2500 l/h). Wall thickness: 2.00 mm. Material: 304 stainless steel. Maximum working pressure: 10 bar. Operating temperature: 0°C ~ +110°C. Insulation: technical foam (black), two-piece design. Mounting: wall-mounted (includes two sheet metal brackets). Warranty: 24 months. |
Mарка:
HISMART
