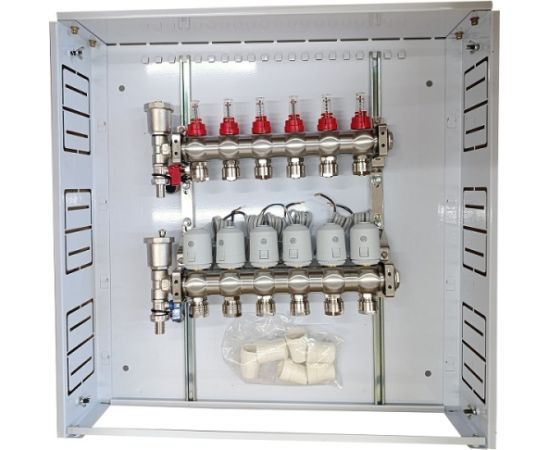

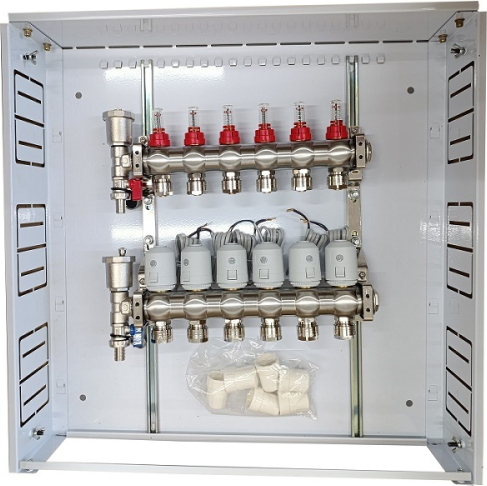

Hismart Heating Manifold 6 Loops with Thermal Actuators NC AC230V and Flow Meters
| Underfloor heating manifold 6 loops with thermal actuators NC AC230V and flow meters The set includes: Flush mounting metal box, 6 loops collector, flow meters and NC AC230V thermal actuators. Features: The UFH (undefloor heating manifold) is the control centre for your underfloor heating, allowing you to individually control the zones designed into the system, ensuring warm water flows to the spaces that need heating and not to those that don't. Electric thermal actuator is designed for controlling the heat distribution equipment. It receives commands from automation devices (such as room thermostats or hub controller) and adjusts the water flow distribution according to set parameters. The thermal actuator allows precise control of room temperature and energy consumption. The thermal actuator is in NC (normally closed) state. The actuator works with any type of programmable or non-programmable room thermostats. Simple installation, the thermal actuators are connected to the manifold via a VA80 thread adapter. Valve thread adapter VA80 allows easy connection to standard thread M30, locking securely. Energy consumption of each drive is only 2W. The supplied flow meters (flow indicators) are intended for monitoring the flow of water and adjusting pressures. The collector cabinet is installed on the wall, flush mounting. The door with a tongue, locks, opens at an angle of 135 degrees. Technical specifications: Manifold: Installation: flush mounting. Size: 640x640x118mm Depth: 110mm. Door dimensions: 580mm x 580mm. Number of flow meters: 6 pcs. Number of thermal actuators: 6 pcs. Air vent nodes: 2 pcs. Heating circuit pipe 16mm adapters: 6 pcs. Color: light gray. Thermal actuator: Purpose: water heating system. Operating type: NC (normally closed). Operating voltage: AC 230V, 50/60Hz. Starting current: max. 300mA. Power consumption: 2W. Installation: connected to the collector via an adapter. Adapter: VA 80. Cable length: 90cm. Operating temperature: 0°C~ +60°C. Storage temperature: -25°C~ +65°C. Operating humidity: < 80%RH (non-condensing). Safety class: IP54. Dimensions: D49.4mm x 56.6mm. Warranty: 12 months. |
Mарка:
HISMART
