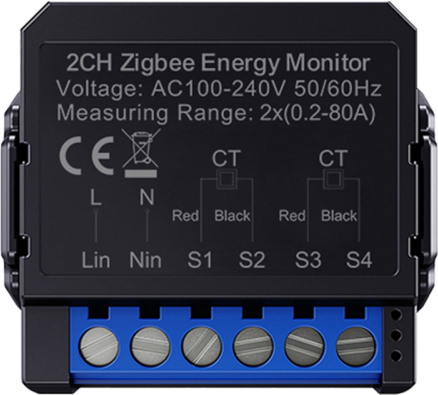

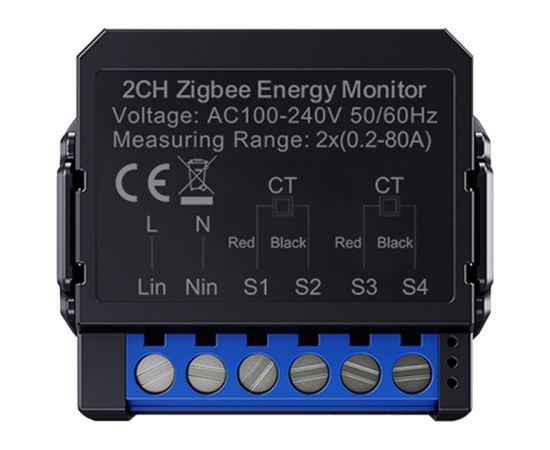

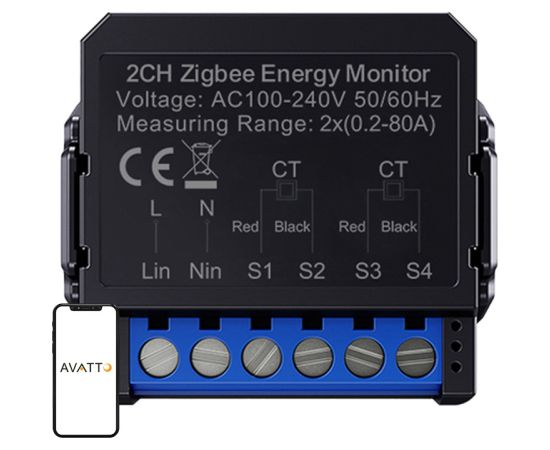

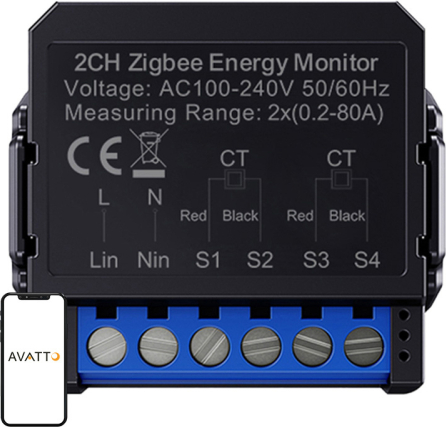

Avatto ZigBee smart bi-directional energy meter ZWPM16-2
Avatto ZigBee ZWPM16-2 smart bidirectional energy meterAvatto ZWPM16-2 is a state-of-the-art energy meter with ZigBee communication, which enables real-time monitoring of power consumption and production. The device is designed for single-phase installations and supports two measurement channels, allowing you to track the flow of energy from both the grid and the photovoltaic installation.
Two-way metering - control energy consumption and exportThanks to its bidirectional metering function, the Avatto ZWPM16-2 can distinguish between energy taken from the grid and that which the installation gives off (e.g., from a PV inverter). This is ideal for photovoltaic users who want to know how much electricity they are consuming and how much they are giving back to the grid.
ZigBee connectivity and working with an appThe device connects to a home ZigBee gateway and works with the Tuya or Smart Life app. In the app, you can check the current operating parameters of the installation: voltage, current, power, as well as analyze power consumption on a daily, monthly or annual basis. A ZigBee gateway (sold separately) is required for operation.

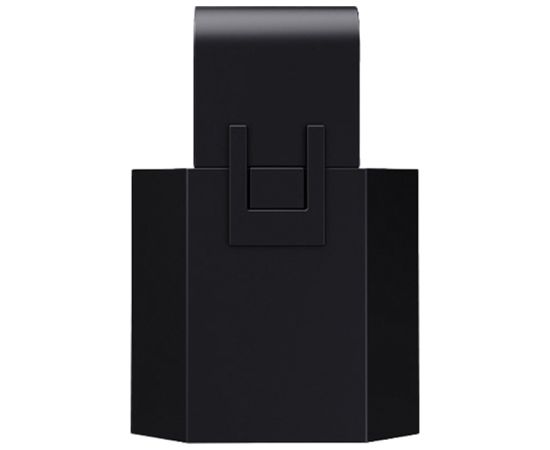

Simple and safe installationThe kit includes a sensor (CT) that mounts without cutting wires - just clip it onto the power cord. The module itself has compact dimensions, so it will fit into a standard switchboard. The cable must supply power to devices above 10 watts for the measurement to be correct.
Power threshold settings and notificationsIn the app, you can define minimum and maximum power consumption, as well as set standby power limits. This is a useful feature that allows you to detect irregularities and automatically respond to exceedances.
| ||||||||||||||||||||
