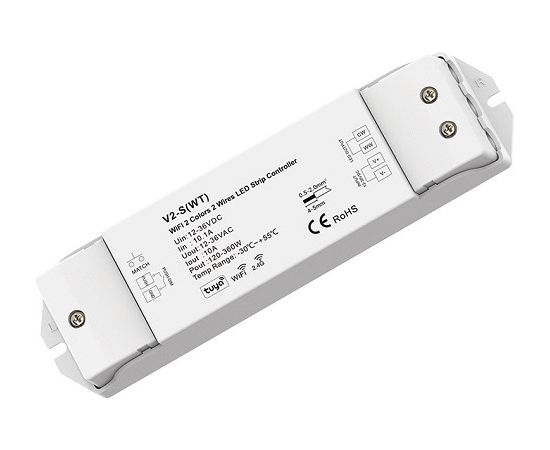

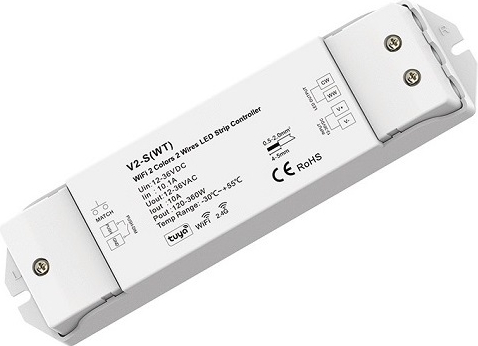

Skydance V2-S(WT) контроллер для светодиодных лент, 12-36V, 1x10A, Tuya, Wi-Fi
| V2-S(WT) Constant Voltage Controller 12–36V DC 1x10A, for Dual White LED Strips, 1 Channel, 2-wire, with Push-Dimm Function, Tuya, Wi-Fi Features: The V2-S(WT) is a smart Wi-Fi and RF CCT LED controller designed specifically for 2-wire LED strips combining warm white (WW) and cool white (CW) light. It supports control via the Tuya Smart or Smart Life app, enabling users to turn the lights on/off, adjust brightness and color temperature, set timers, use lighting scenes, and music play function. This controller is compatible with popular voice assistants such as Amazon Alexa, Google Assistant, Tmall Genie, and Xiaodu. Each V2-S(WT) controller can also work as Wi-Fi to RF converter, so you can use Tuya smart APP to control one or more RF CCT LED controllers synchronously. The controller uses advanced PWM (Pulse Width Modulation) technology for digital control of constant voltage LED lighting, and applies a linear dimming curve for smooth adjustment. It supports control via 2.4 GHz RF remote controllers and includes a built-in MATCH button for easy pairing with remotes. It also features a Push-Dimm function: a standard momentary (bell-type) switch can be connected, enabling manual on/off control and 0–100% brightness adjustment. Power-cycling the controller multiple times allows switching between three fixed color temperatures – warm white (WW), neutral white (NW), and cool white (CW). An optional fade in/out effect provides a smoother and more comfortable lighting transition when switching on or off. The device is equipped with reverse polarity protection, and its quality is ensured by CE and RoHS certifications. This is a universal, flexible, and smart solution for convenient control of CCT LED strips – via mobile app, voice, or wall switch. Technical specifications: Product model: V2-S(WT). Channels: 1. Supported lighting systems: single-color. Control frequency: Wi-Fi + RF 2.4GHz. Input voltage: 12V-36V DC. Input current: 10.1A. Output voltage: 12V-36V DC. Output current: 10A. Output power: 120-360W. PWM frequency: 2000Hz. Gray scale: 256 levels. Dimming range: 0-100%. Control distance: up to 30m (open space). APP: Tuya Smart / Smart Life (Android, iOS). Works with Amazon Alexa & Google Assistant. Compatible wire cross-section: 0.5-2.0 mmІ. Certifications: CE, EMC, RoHS. Operating temperature: -30 to +55°C. Dimensions: 178 x 50 x 38 mm. Color: white. Weight: 136 g. Warranty: 24 months.  |
Mарка:
SKYDANCE
