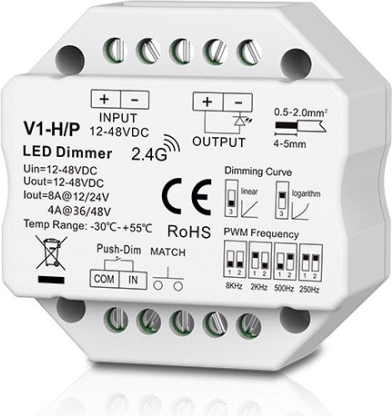

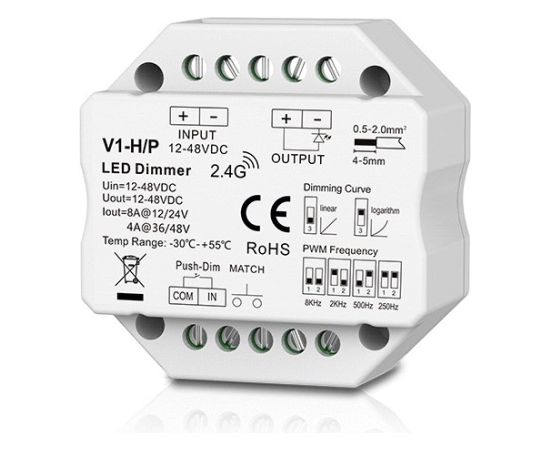

V1-H/P constant voltage controller 12-48V DC 1x 8A, for single color LED strips, with Push-Dimm function, 1 channel

Features:
The V1-H/P is a smart LED controller designed for single-color lighting systems such as LED strips, LED panels, or dimmable LED bulbs. It ensures ultra-smooth dimming or brightening with 4096 levels of adjustment from 0 to 100%, without flickering or visual distortion.
Powered by advanced PWM (Pulse Width Modulation) digital dimming technology for constant voltage LED lighting, it offers selectable output frequencies of 500Hz/ 2kHz/ 8kHz/ 16kHz. Users can also choose between logarithmic or linear dimming curves and set light on/off fade time up to 3 seconds.
Can be controlled by 2.4 GHz RF remote controls, push switches
One controller can be linked with up to 10 RF remotes, and one remote can control an unlimited number of controllers within a 30-meter range.
An integrated MATCH button allows easy pairing with remote controls.
It features Push-Dimm functionality, allowing control via a standard push switch.
Compact in size, the unit fits easily into a standard wall junction box behind a regular switch.
The device includes protections against reverse polarity and short circuits.
It is certified to CE and RoHS standards, making it a versatile, reliable, and smart solution for various LED lighting projects.

Technical specifications:
Product model: V1-H/P.
Channels: 1.
Supported lighting systems: single-color.
Control frequency: RF 2.4GHz.
Input voltage: 12V-48V DC.
Output voltage: 12V-48V DC.
Output current: 8A@12/24V; 4A@36/48V.
Output power: 96W@12V; 192W@24V; 144W@36V; 192W@48V.
PWM frequency: 500Hz/ 2kHz/ 8kHz/ 16kHz.
Gray scale: 4096 levels.
Dimming range: 0-100%.
Control distance: up to 30m.
Safety class: IP20 (not waterproof).
Compatible wire cross-section: 0.5-2.0 mmІ.
Certifications: CE, EMC, LVD, RED, RoHS.
Operating temperature: -30 to +55°C.
Dimensions: 52 x 52 x 26 mm.
Color: white.
Weight: 61g.

Warranty: 24 months.
