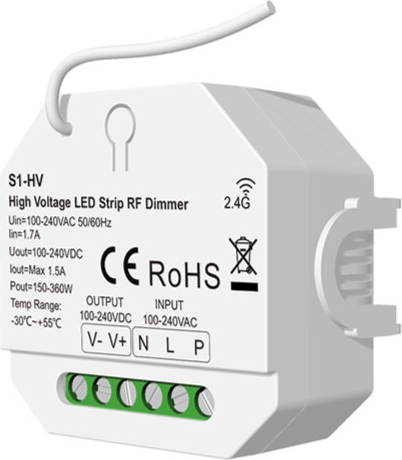

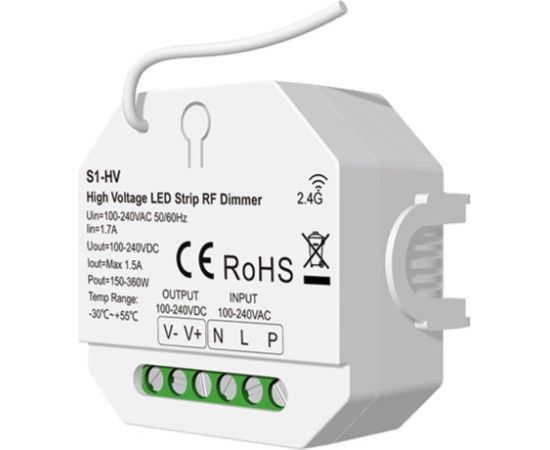

S1-HV high voltage LED strip dimmer, for single-color LED strips, with Push-Dimm function, 1 channel, for max. 25m LED strip, 150-360W

Features:
The high-voltage controller is suitable for controlling single-color LED strips up to 25 meters long, with a maximum power of 360W. It is designed to regulate light intensity. The device operates with 100-240VAC voltage and can regulate current up to 1.5A.
Supports lighting systems: single color.
The controller enables smooth dimming or brightening with up to 4096 levels from 0 to 100% and is compatible with dimmable LED strips.
The controller allows light on/off fade time up to 3 seconds.
The LED dimmer is compatible with RF 2.4 GHz single-zone or multiple zone dimming remote controls. One RF controller can be paired with up to ten remote controls. It features an auto-transmitting function, automatically forwarding the signal to another controller within a 30-meter range. The controller also supports synchronized operation with multiple other controllers.
A pairing button (MATCH) is provided for easy connection with remote controls.
The device uses advanced PWM (Pulse Width Modulation) digital control technology for precise dimming of constant voltage LED lamps.
It features Push-Dimm functionality, allowing connection of a standard momentary (bell-type) switch.
Compact and space-saving, the controller fits directly into a standard wall mounting box behind a regular push switch.
Certified with CE, EMC, RED and RoHS.

Technical specifications:
Product model: S1-HV.
Number of channels: 1.
Controlled lighting systems: single-color.
Operating frequency: RF 2.4GHz.
Input voltage: 100V-240V AC.
Input current: 1.7A.
Output voltage: 100V-240V AC.
Output current: 1.5A.
Max. output power: 150-360W.
PWM frequency: 2kHz.
Grey scale: 4096 levels.
Dimming range: 0-100%.
Operating distance: up to 30m (open area).
Certificates: CE, EMC, LVD, RED, RoHS.
Operating temperature: -30~+55°C.
Dimensions: 56 x 49.5 x 28 mm.
Color: white.
Weight: 67g.

Warranty: 24 months.
