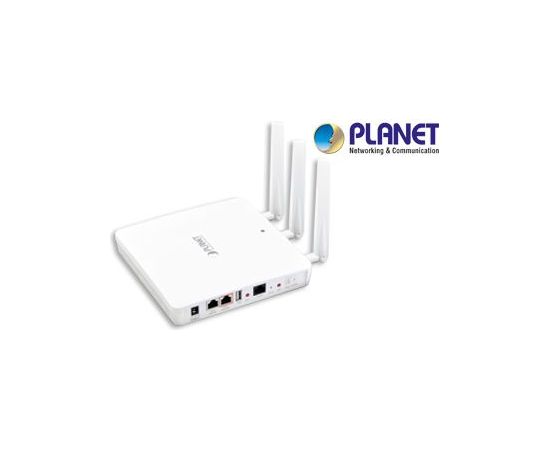

1750Mbps enterprise wireless access point
| Features: • Complies with IEEE 802.11ac (draft 2.0) and IEEE 802.11a/b/g/n standards • 2 x 10/100/1000BASE-T port with PoE supporting 802.3at and 802.3af PSE (Power Sourcing Equipment) • IEEE standard 802.3af/at PoE design RF Interface Characteristics • Features 2.4GHz (802.11b/g/n) and 5GHz (802.11a/n/ac) concurrent dual band for more efficiency of carrying high load traffic • 3T3R MIMO technology for enhanced throughput and coverage • Provides multiple adjustable transmit power control • High speed up to 1.75Gbps (450Mbps for 2.4GHz + 1300Mbps for 5GHz) wireless data rate Comprehensive Wireless Advanced Features • Multiple Wireless Modes: AP,WDS PtP/ PtMP, and WDS Repeater • Supports up to 32 multiple-SSIDs (2.4GHz + 5GHz) to allow users to access different networks through a single AP • Supports VLAN function to limit the clients to access the specific internal network resource • Supports WMM (Wi-Fi Multimedia) and wireless QoS to enhance the efficiency of multimedia application • Supports wireless schedule to automatically enable or disable the wireless function based on predefined schedule Secure Network Connection • Advanced security: 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK (TKIP/AES encryption) and 802.1x Radius Authentication • Supports MAC address filtering Easy Installation & Management • Flexible deployment with standard 802.3at PoE/ PD supported • Web-based configuration of HTTP/HTTPS/SSH/CLI • SNMP-based management interface • System status monitoring includes DHCP Client and System Log Technical Specifications: • Interfaces LAN 2 x 10/100/1000BASE-T RJ45 port • Auto-negotiation and auto MDI/MDI-X • Antennas Gain 3 x 2dBi SMA antenna • Reset Button Press over 5 seconds to reset the device to factory default • LED Indicators PWR • Allow LED to turn off via software control • Material Plastic • Dimensions (W x D x H) 182 x 182 x 30 mm • Weight 470g • Power Requirements DC Input: 12V DC, 4A • PoE Input: IEEE 802.3at PoE+, 48~56V DC in-line power • Power Consumption 20W (without PSE) • ESD Protection ±8kV air-gap discharge, ±4kV contact discharge • Mounting Wall mount / Desktop • Wireless Interface Specifications • Standard IEEE 802.11ac (draft 2.0) 5GHz • IEEE 802.11a/n 5GHz • IEEE 802.11b/g/n 2.4GHz • Operating Channels 2.4GHz America/ FCC: 1~11 • Europe/ ETSI: 1~13 • 5GHz: America/ FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 • Europe/ ETSI: 36, 40, 44, 48 • 5GHz channel list will vary in different countries according to their regulations. • Antenna Structure 802.11ac: 3T3R MU-MIMO • 802.11n: 3T3R MIMO • Modulation DSSS • Data Modulation 802.11ac: OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) • 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) • 802.11b: DSSS (DBPSK / DQPSK / CCK) • Band Mode 2.4G / 5G concurrent mode • Frequency Range 2.4GHz: America/ FCC: 2.412~2.462GHz • Europe/ ETSI: 2.412~2.484GHz • 5GHz: America/ FCC: 5.180~5.240GHz, 5.725~5.850GHz • Europe/ ETSI: 5.180~5.240GHz • Channel Width 802.11ac: 20/40/80MHz • 802.11n: 20/40MHz • Transmission Distance 802.11ac (draft): up to 30m • 802.11n: up to 70m • 802.11g: up to 30m • The estimated transmission distance is based on the theory. The actual distance will vary in different environments. Max. RF Power 5GHz: • 802.11ac (VHT20/40/80): 27.5dBm @MCS0 • 802.11ac (VHT20/40/80): 22.5dBm @MCS7 • 802.11ac (VHT20/40/80): 19.5dBm @MCS9 • 802.11n (HT20/40): 27.5dBm @MCS0/MCS8 • 802.11n (HT20/40): 22.5dBm @MCS7/MCS15 • 802.11a: 26.5dBm @6Mbps 22.5dBm @54Mbps 2.4GHz: • 802.11n (HT20/40): 27.5dBm @MCS0 • 802.11n (HT20/40): 22.5dBm @MCS7 • 802.11g: 27.5dBm @6Mbps • 802.11g: 23.5dBm @54Mbps • 802.11b: 27.5dBm @1Mbps Receive Sensitivity 5GHz: • 802.11ac (VHT20): -64dBm @MCS9 • 802.11ac (VHT40): -61dBm @MCS9 • 802.11ac (VHT80): -58dBm @MCS9 • 802.11n (HT20): -87dBm @MCS0, -67dBm @MCS7 • 802.11n (HT40): -84dBm @MCS0, -63dBm @MCS7 • 802.11a: -71dBm @54Mbps 2.4GHz: • 802.11n (HT20/40): -87dBm @MCS0 • 802.11n (HT20/40): -67dBm @MCS7 • 802.11g: -70dBm @54Mbps • 802.11b: -90dBm @1Mbps Software Features • Wireless Mode AP (Access Point) • Repeater (WDS + AP) • WDS PTP (Point to Point) • WDS PTMP (Point to Multipoint) • Encryption Security WEP (64/128-bit) encryption security • WPA / WPA2 (TKIP/AES) • WPA-PSK / WPA2-PSK (TKIP/AES) • 802.1x Authenticator • Wireless Security Wireless MAC address filtering • Supports WPS (Wi-Fi Protected Setup) • Enable/ Disable SSID Broadcast • Wireless Advanced WMM (Wi-Fi Multimedia), Max. Associated Station Number • Multiple SSIDs: up to 16 at 2.4GHz and 16 at 5GHz • Wireless Isolation: Enable it to isolate each connected wireless client from communicating with each other WLAN L2 isolation (AP mode) Provides wireless statistics • Max. Clients Wired: 253 • 2.4GHz Wireless: 50 • 5GHz Wireless: 50 • LAN Built-in DHCP server supporting static IP address distribution • Supports UPnP • Supports 802.1Q VLAN • System Management Web-based (HTTP) management interface • SNTP synchronization • Easy firmware upgrade • Supports scheduling reboot • Supports Smart Discovery Utility • Standards Conformance • IEEE Standards IEEE 802.11ac (draft 2.0, 3T3R, up to 1300Mbps) • IEEE 802.11n (3T3R, up to 450Mbps) • IEEE 802.11g • IEEE 802.11b • IEEE 802.11i • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3x Flow Control • Other Protocols and Standards CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP Environment & Certification • Temperature Operating: 0 ~ 50 degrees C • Storage: -20 ~ 60 degrees C • Humidity Operating: 10 ~ 90% (non-condensing) • Storage: 5 ~ 90% (non-condensing) • Regulatory FCC, CE |
Mарка:
Unknown
