| Gross depth (mm) | 175 mm |
| Gross depth (mm) | 175 mm |
| Gross height (mm) | 70 mm |
| Gross height (mm) | 70 mm |
| Gross weight | 0.603 kg |
| Gross weight | 0.603 kg |
| Gross width (mm) | 150 mm |
| Gross width (mm) | 150 mm |
| Net weight | 0.453 kg |
| Net weight | 0.453 kg |
| Packing quantity | 10 pc(s) |
| Packing quantity | 10 pc(s) |
| Paper/Pasteboard | 130.00 g |
| Paper/Pasteboard | 130.00 g |
| Plastic (No PET) | 20.00 g |
| Plastic (No PET) | 20.00 g |
| Tare weight (kg) | 0.15 kg |
| Tare weight (kg) | 0.15 kg |
| Volume (m3) | 0.0018375 m³ |
| Volume (m3) | 0.0018375 m³ |
| Embeeded battery | Нет |
| Embeeded battery | Нет |
| WEEE tax | Да |
| WEEE tax | Да |
| WEE classification | CL109:6:2017-04-01 |
| WEE classification | CL109:6:2017-04-01 |
| Warranty | 12 month(s) |
| Warranty | 12 month(s) |
| Producer product name | TSW200 |
| Producer product name | TSW200 |
| Producer product family | Ethernet Switch |
| Producer product family | Ethernet Switch |
| POE | PoE+ 802.3at/af |
| POE | PoE+ 802.3at/af |
| Predominant port type | 10/100/1000 Mbps (RJ-45) |
| Predominant port type | 10/100/1000 Mbps (RJ-45) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Switch type | Unmanaged |
| Switch type | Unmanaged |
| Power supply type | Ingress Protection Rating: IP30 |
| Power supply type | Ingress Protection Rating: IP30 |
| Form factor | Desktop |
| Form factor | Desktop |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) ports quantity | 8 |
| SFP ports quantity | 2 |
| SFP ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 8 |
| Ethernet LAN (RJ-45) ports | 8 |
| Power over Ethernet (PoE) | Да |
| Power over Ethernet (PoE) | Да |
| Case design | Aluminum |
| Case design | Aluminum |
| Operating relative humidity (H-H) | 10 % to 90 % non condensing % |
| Operating relative humidity (H-H) | 10 % to 90 % non condensing % |
| Connectivity LEDs | 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s |
| Connectivity LEDs | 1 x Power LED, 16 x LAN status LED’s 2 x SFP status LED’s |
| Operating temperature (T-T) | 40 °C to +75 °C °C |
| Operating temperature (T-T) | 40 °C to +75 °C °C |

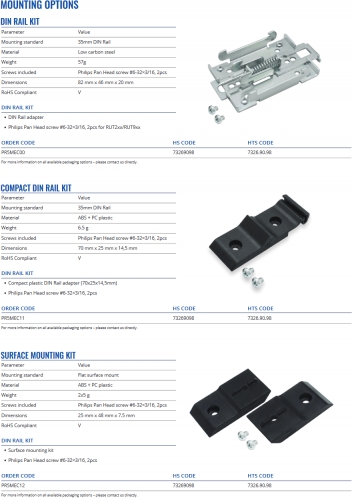

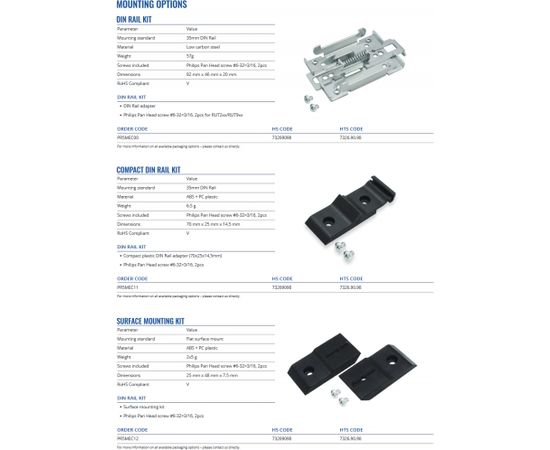

| Rack mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| Rack mounting | DIN rail or wall mounting (additional kit needed), flat surface placement |
| Dimensions (WxDxH) | 132x44.2x95.1 mm |
| Dimensions (WxDxH) | 132x44.2x95.1 mm |
| Case material | Full aluminum housing |
| Case material | Full aluminum housing |
| Power consumption (max) | 1,81 W/5.5 W/245.5 W(idle/max no PoE/max) W |
| Power consumption (max) | 1,81 W/5.5 W/245.5 W(idle/max no PoE/max) W |
| Input voltage | 7-57 VDC (Input voltage range for PoE: 44-57 VDC) V |
| Input voltage | 7-57 VDC (Input voltage range for PoE: 44-57 VDC) V |
| Bandwidth | 20 (Non-blocking) Gbit/s |
| Bandwidth | 20 (Non-blocking) Gbit/s |
| Total Power over Ethernet (PoE) budget | 240 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet plus (PoE+) ports quantity | 30 |
| Power over Ethernet plus (PoE+) ports quantity | 30 |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Box contents | TSW200, Quick Start Guide, (NO ADAPTER) |
| Box contents | TSW200, Quick Start Guide, (NO ADAPTER) |
| AC adapter included | NO |
| AC adapter included | NO |
| Gross depth master carton | 375 mm |
| Gross depth master carton | 375 mm |
| Gross width master carton | 368 mm |
| Gross width master carton | 368 mm |
| Gross height master carton | 170 mm |
| Gross height master carton | 170 mm |
| Net weight master carton | 6.03 kg |
| Net weight master carton | 6.03 kg |
| Tare weight master carton | 0.399 kg |
| Tare weight master carton | 0.399 kg |
