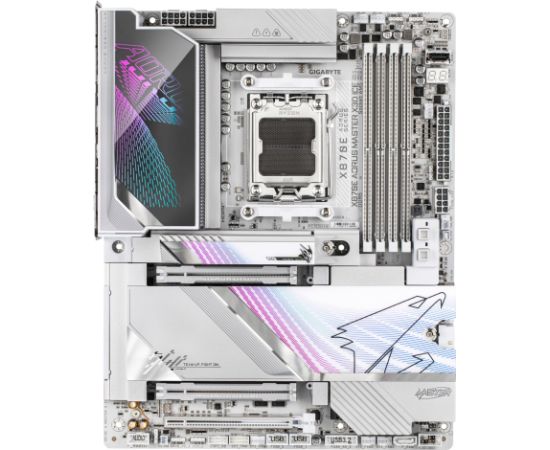

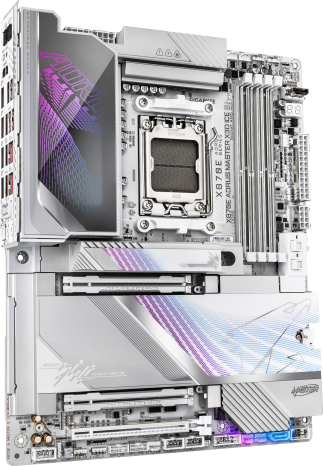

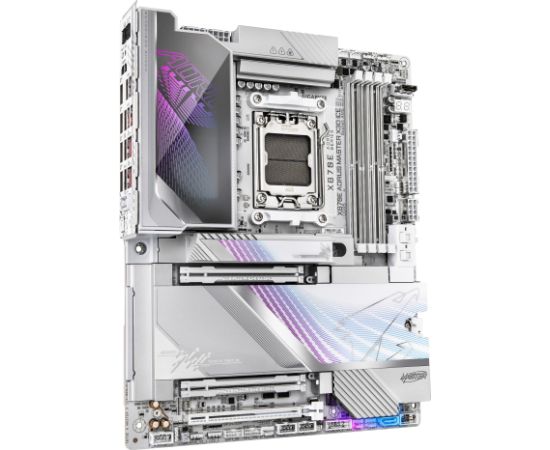

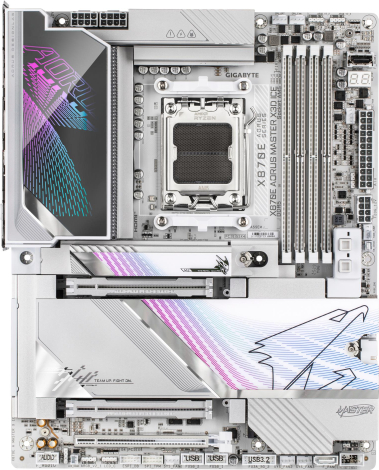

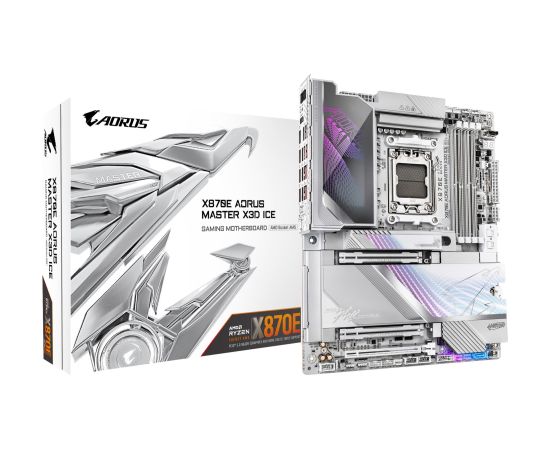

| Summary | GIGABYTE X870E AORUS MASTER X3D ICE Motherboard - Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be) |
| Category Code | MBA |
| CnCode | 84733020 |
| Unit Box Height | 0.31 |
| Unit Box Length | 0.34 |
| Unit Box Width | 0.095 |
| Audio chip | Realtek ALC1220-VB/ESS 9118 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Cooling type | Passive |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | ATX |
| PC health monitoring | CPU/Fan/Temperature/Voltage/Water cooling |
| Power source type | ATX |
| Product colour | White |
| Windows operating systems supported | Windows 11 x64 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9000 MHz |
| Supported memory clock speeds | 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Да |
| Number of HDDs supported | 2 |
| Number of storage drives supported | 7 |
| RAID levels | 0/1/10/5 |
| RAID support | Да |
| Supported storage drive interfaces | M.2,PCI Express 4.0,PCI Express 5.0,SATA III |
| Supported storage drive types | HDD & SSD |
| DirectX version | 12.0 |
| HDCP | Да |
| Maximum resolution | 4096 x 2304 pixels |
| Parallel processing technology support | Not supported |
| ATX Power connector (24-pin) | Да |
| Chassis intrusion connector | Да |
| CPU fan connector | Да |
| EPS power connector (8-pin) | Да |
| Front panel audio connector | Да |
| Front panel connector | Да |
| Number of chassis fan connectors | 6 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 3 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 5 |
| Number of SATA III connectors | 2 |
| Number of temperature sensor headers | 2 |
| Number of water pump connectors | 2 |
| RGB LED pin header | Да |
| TPM connector | Да |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2x2 connectors | 1 |

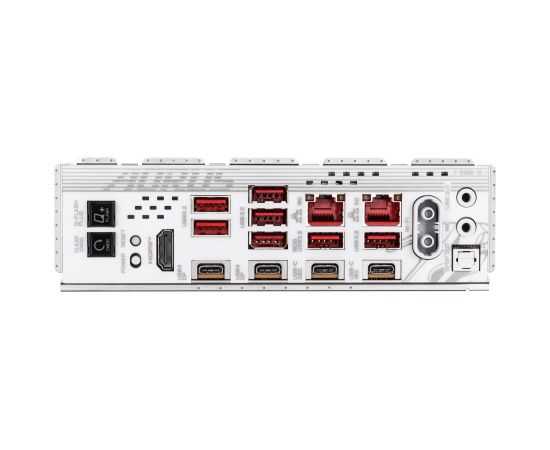

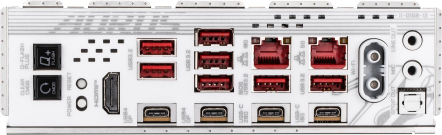

| Digital audio optical out | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 1 |
| Line-in | Да |
| S/PDIF out port | Да |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| Bluetooth | Да |
| Bluetooth version | 5.4 |
| Ethernet interface type | 10 Gigabit Ethernet/2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Да |
| LAN controller | Realtek RTL8126/Realtek RTL8127 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Да |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7927 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 2580 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2280 |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| ACPI version | 5.0 |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | Да |
| Clear CMOS jumper | Да |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery weight | 3 g |
| Country of origin | Taiwan |
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Package depth | 310 mm |
| Package height | 92 mm |
| Package weight | 4380 g |
| Package width | 340 mm |
| Products per shipping (inner) case | 1 pc(s) |
| Depth | 244 mm |
| Height | 35 mm |
| Width | 305 mm |
| Antenna included | Да |
| Batteries included | Да |
| Bundled software | Norton® Internet Security (OEM version) |
| Screws included | Да |
| Warranty period | 3 year(s) |
| Weight | 3820 g |
| Model | X870E A MASTER X ICE |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.010013 cubm |
| Unit Calculated Weight | 3.8 kg |
