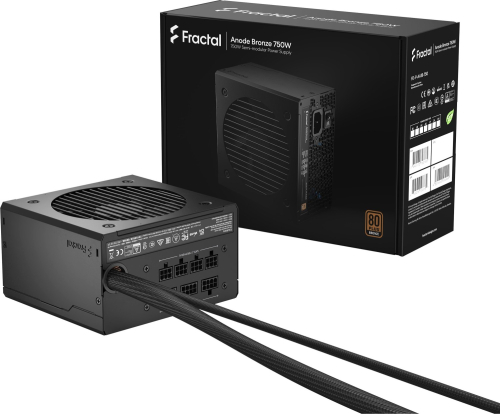

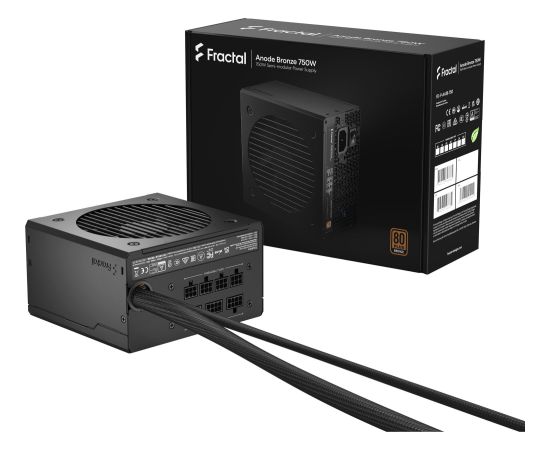

Fractal Design Anode Bronze 750W, PC power supply
| Anode Bronze 750W, PC power supply The Fractal Design Anode Bronze is a solid and robust PC power supply for every demanding user. The semi-modular cables offer easier installation and less clutter in the PC. The 80 PLUS Bronze efficiency offers high reliability. An efficient DC-DC design and the modern ATX 2.52 standard offer tight timing limits. Type: PC power supply Color: Black EAN: 7340172703785 Manufacturer No.: FD-P-AA1B-750-EU Performance: Total | 750W Power: +12V total | 750W Performance: input voltage range | 100-240 volts Default: ATX12V 2.52 Design: ATX Certification: 80 PLUS Bronze Amperages: +3.3 V | 22A Amperages: +5 V | 22A Currents: +5 Vsb | 3 A Amperages: -12 V | 0.3A Amperages: +12 V total | 62.5A Amperages: +12 V1 | 62.5A Power Factor Correction: Active PFC Switch: 1x power switch Connectors: 1x 24-pin ATX12V-2.x, 1x 4+4-pin 12V, 2x 4-pin 5.25", 4x 6+2-pin graphics, 8x 15-pin SATA Cable: Lengths | 5.25-inch drive connectors: 1x 40 cm, 1x 55 cm, SATA drive connectors: 1x 65 cm, 1x 80 cm, 2x 40 cm, 2x 55 cm, 2x 70 cm, 6-/8-pin graphics connectors: 2x 52 cm, 2x 62 cm Cables: Cable Management | Yes Cooling: number of fans | 1x 120mm fan Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Under Voltage Protection (UVP), Over Load Protection (OLP/OPP), Short Circuit Protection (SCP), Over Temperature Protection (OTP) Dimensions: Width: 150mm x Height: 86mm x Depth/Length: 140mm Weight: 2.1kg |
Mарка:
FRACTAL DESIGN
