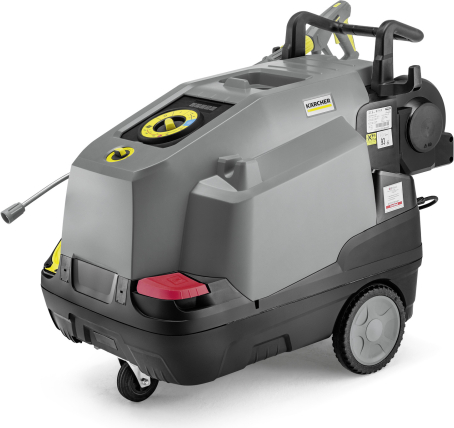

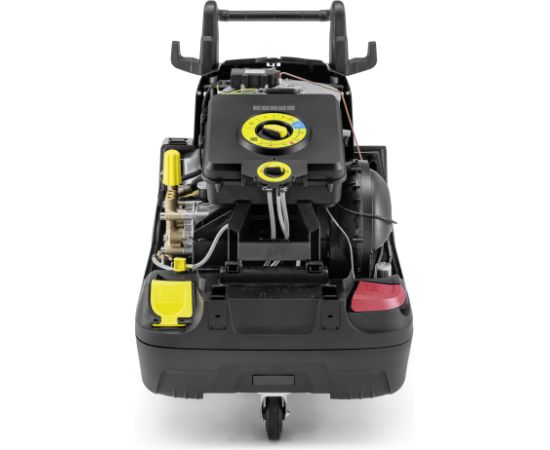

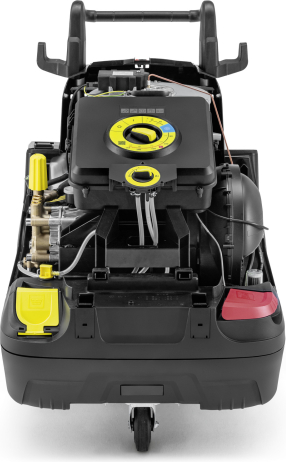

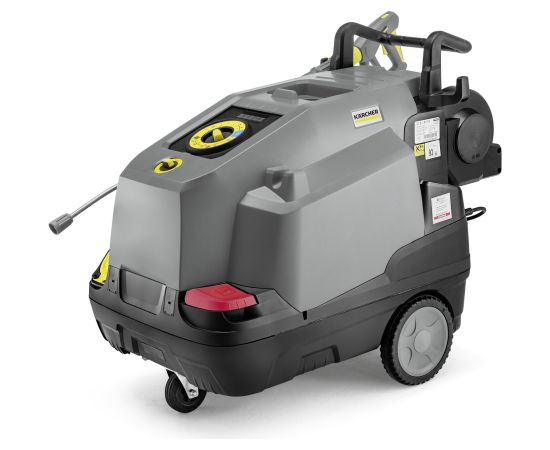

Karcher HDS 8/18-4 CXA *EU
Powerful HDS 8/18-4 CXA 3-phase hot water high-pressure cleaner in the compact class with eco!efficiency mode, steam stage and an automatic reel with 15 m Ultra Guard high-pressure hose.
The most powerful 3-phase hot water high-pressure cleaner in the compact class, including automatic hose reel: the HDS 8/18-4 CXA with eco!efficiency and steam stage. Its powerful 4-pole motor is water-cooled. A robust axial pump with three ceramic pistons builds up high pressure. The automatic reel for winding and unwinding the 15-metre long Ultra Guard high-pressure hose with Teflon® coating, even under pressure, ensures flexibility and short set-up times. The EASY!Force Advanced high-pressure gun with servo control for adjustment of pressure and water flow, patented nozzle technology and EASY!Lock quick-release fasteners makes for ergonomic work. The Soft Damping System (SDS) reduces vibrations. The hot water technology effectively breaks up even lubricants and reduces the use of detergents, which are precisely dosed from a 15.5-litre tank. The maintenance-friendly HDS 8/18-4 CXA is designed for daily use under hard conditions. The descaling option, a water filter and a safety valve protect the technology. A robust chassis protects against impacts, while large wheels and a steering roller/castor offer high manoeuvrability.
Features and benefits
Automatic hose reel
Scratch-resistant and smooth Ultra Guard HD hose with Teflon® coating.
Automatic hose reel for safe working and convenient storage of the 15 m Ultra Guard high-pressure hose with Teflon® coating
High efficiency
eco!efficiency mode – economical and environmentally friendly, even during longer periods of use.
Reduces fuel consumption and CO₂ emissions by 20%.
Wide-ranging accessories with EASY!Lock
EASY!Force Advanced for fatigue-free work without any holding force.
Pressure and water volume can be adjusted on the Servo Control controller positioned between the lance and trigger gun.
Rotating 1050 mm stainless steel lance.
Operational safety
Easy-to-access water filter protects the pump against dirt particles in the water.
Safety valves, water shortage and fuel protection ensure the availability of the machine.
Reliability
Water softening system to protect the heating coil against calcification damage.
The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Multiple storage spaces for accessories integrated into the machine
Storage hooks for power cable and high-pressure hose.
Integrated nozzle storage.
Integrated lance holder for transport.

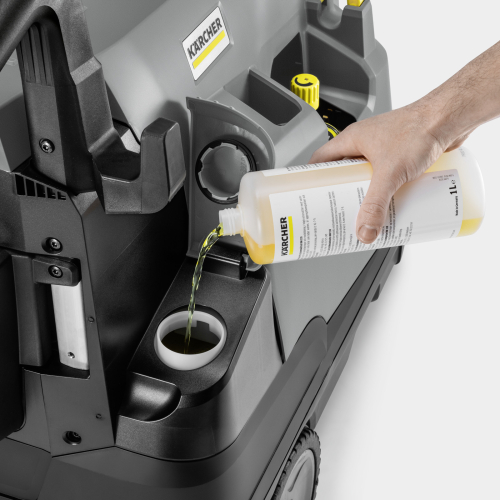

Detergent dosing unit
Precise detergent dosing unit with rinse function.
Large tank opening with filling chute.
Mobility concept
"Jogger" design with large rubber wheels and steering roller.
Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.
Push handles for simple transport and manoeuvrability.
Easy to use controls
Intuitive operation thanks to the large single-button selector switch.
Specifications
Technical data
Power supply (Ph/V/Hz) 3 / 400 / 50
Flow rate (l/h) 300 - 800
Working pressure (bar/MPa) 30 - 180 / 3 - 18
Max. pressure (bar) 220
Temperature (for supply 12 °C) (°C) min. 80 - max. 155
Connected load (kW) 6
Consumption of fuel oil at full load (kg/h) 5,2
Consumption of heating oil in eco!efficiency mode (kg/h) 4,2
Power cable (m) 5
Fuel tank (l) 15
Weight (with accessories) (kg) 122,3
Weight incl. packaging (kg) 134,3
Dimensions (L × W × H) (mm) 1260 x 650 x 920
Scope of supply
Spray gun: EASY!Force Advanced
Spray lance: 1050 mm
Power nozzle
Servo Control
Equipment
High-pressure hose length: 15 m
High-pressure hose specification: DN 6, 250 bar
Soft Damping System (SDS)
Integrated automatic hose reel
Pressure cut-off
Integrated fuel and detergent tank
| ||
|
