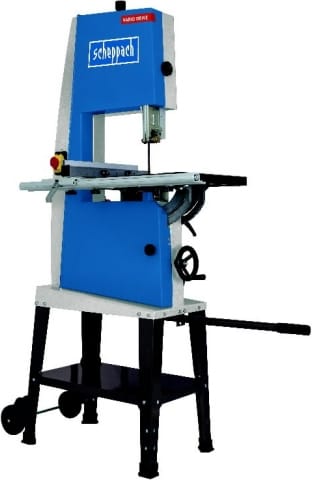

Lentzāģis Basa 3V 230V, Scheppach
| Dimensions (L/W/H): 860 x 600 x 1115 mm
Table size: 548 x 400 mm
Table adjustment: -8° to +45°
Blade wheel ø: 315 mm
Sawblade length: 2360 mm
Cutting speed m/min - 370 - 750 m/min
Clearance height/width: 205 mm/306 mm
Weight approx. - 75 kg
Motor - 220-240 V / 50Hz
Input - 0.8 kW
Unique vario drive adjustable from 370 to 750 rpm
Sturdy cast-iron table tiltable from -8° to +45°
3-roller precision guiding above and below the table
Balanced and grinded band wheels with rubber facing
Quick-clamping lever for saw blade
Maximum cutting height: 205 mm
Throat 306 mm
Precision rip fence with magnified scale which can be set both left and right of saw blade
Leg stand with wheel kit included | ||
|
Mарка:
SCHEPPACH
